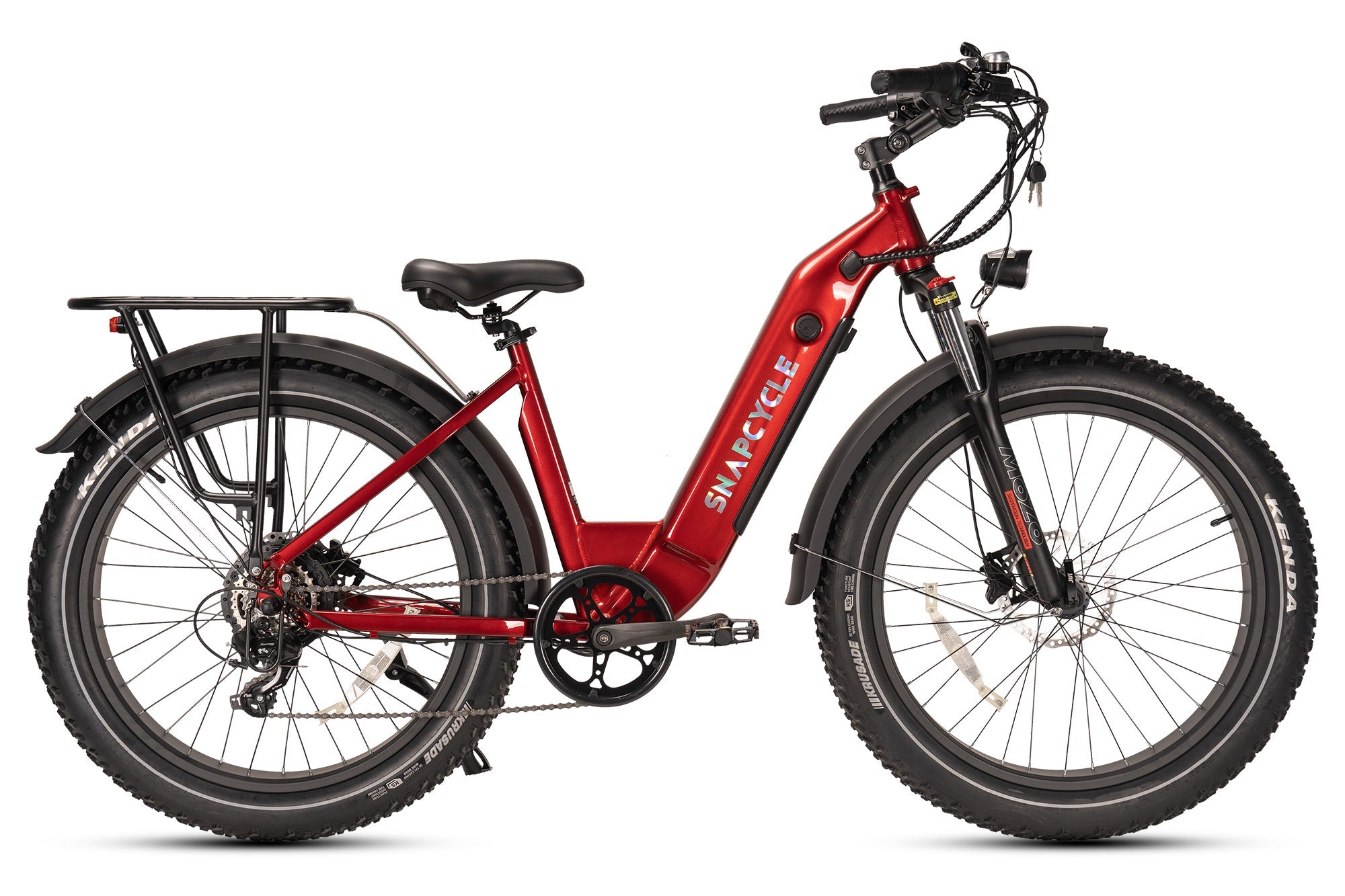

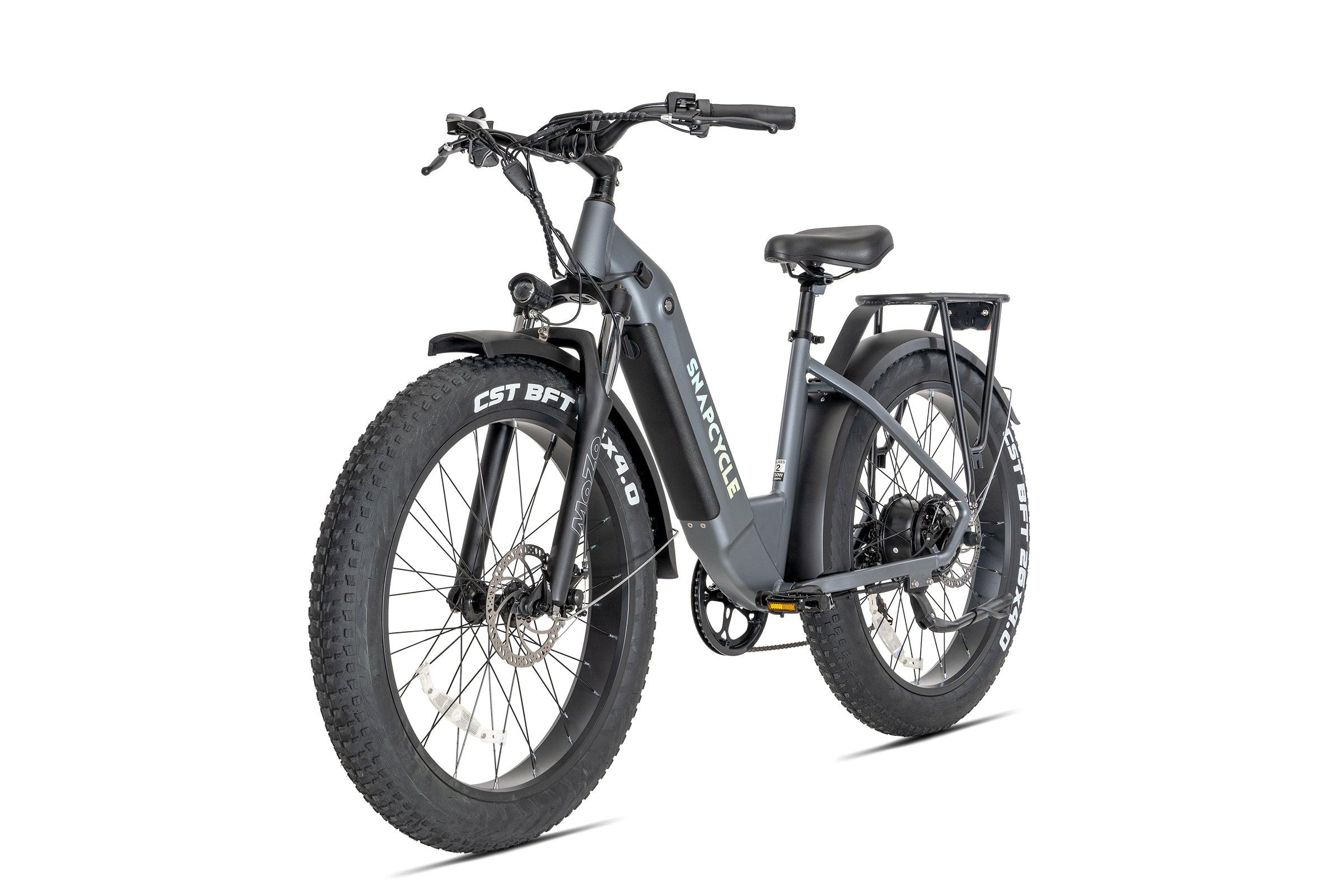

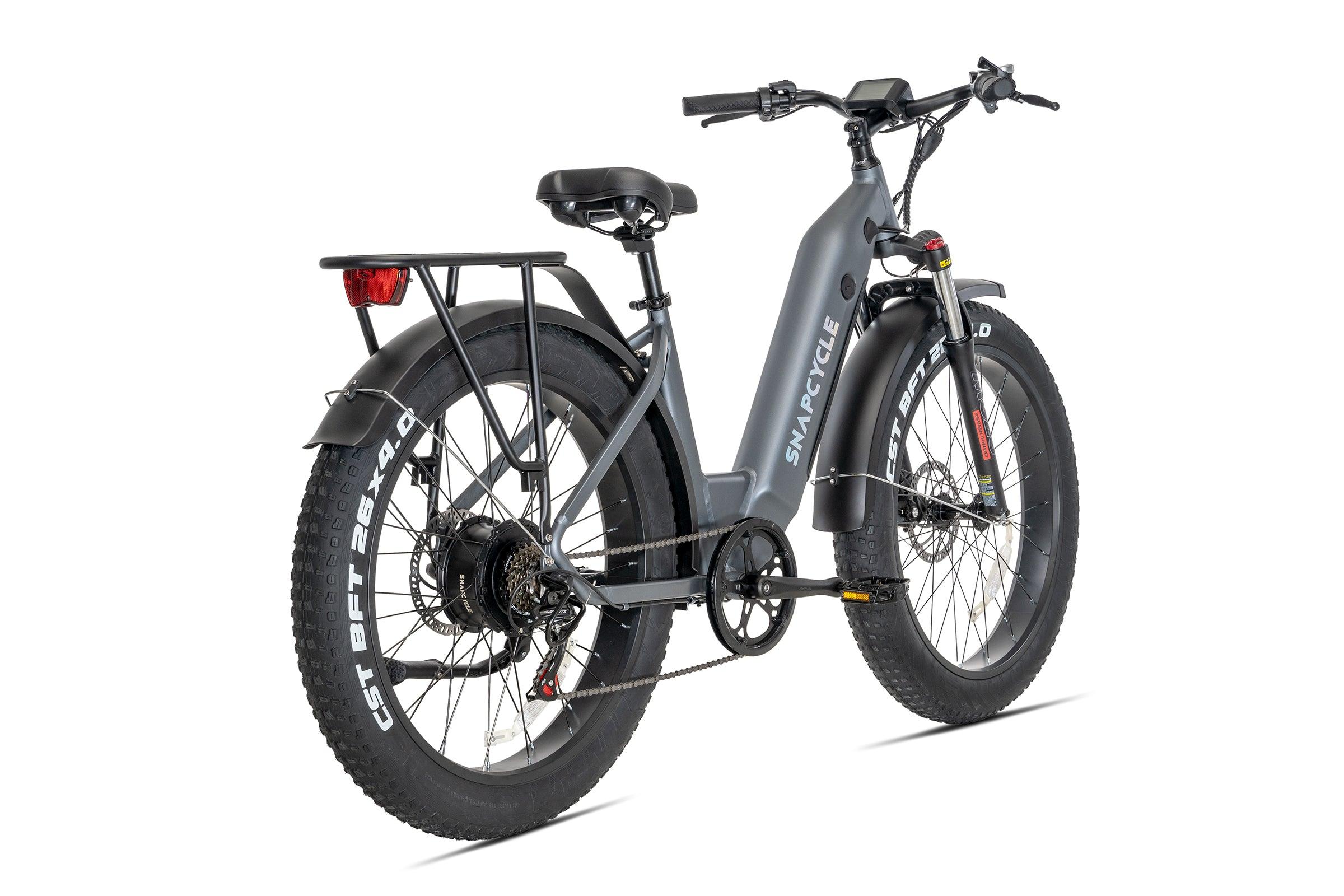

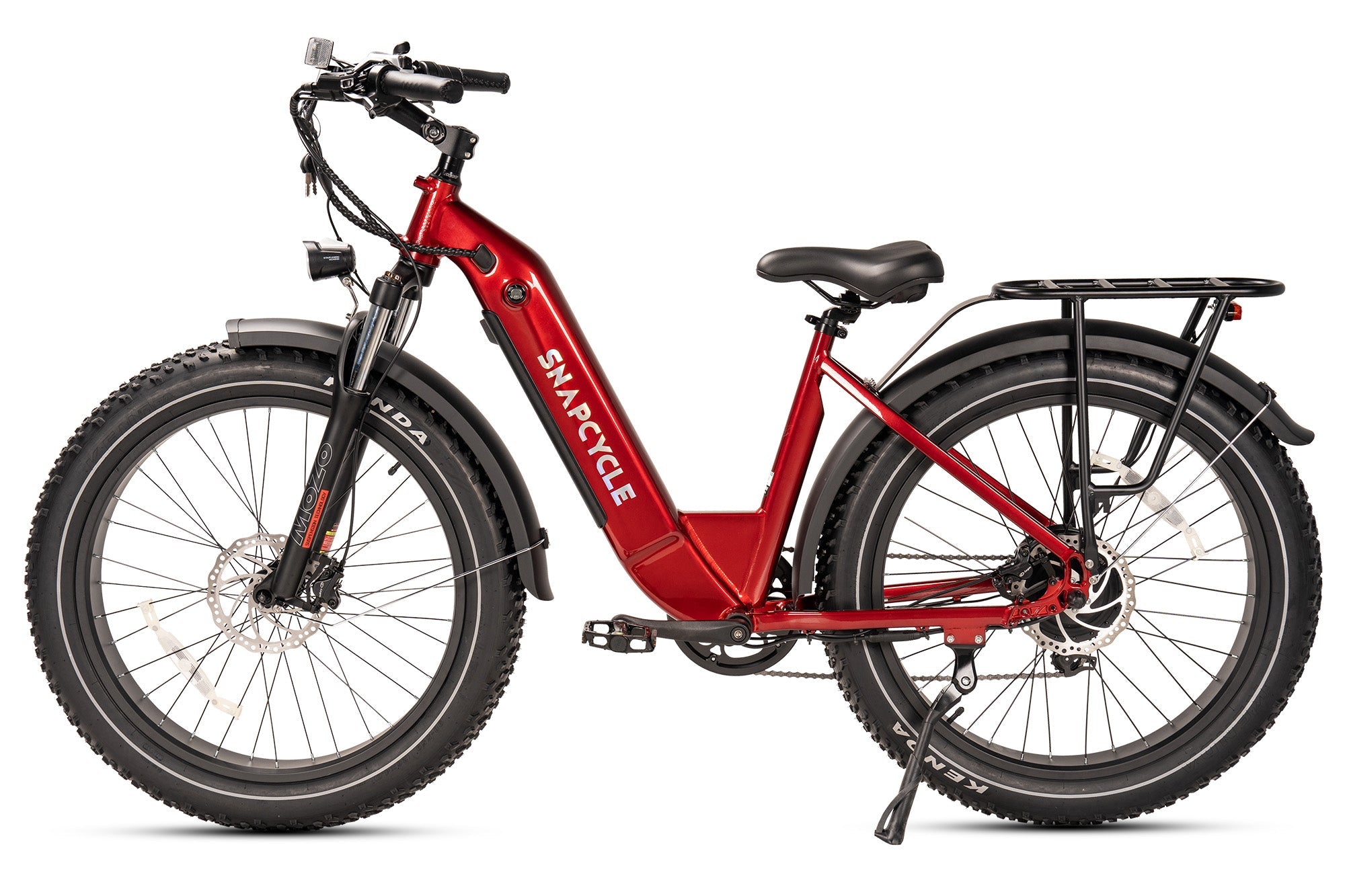

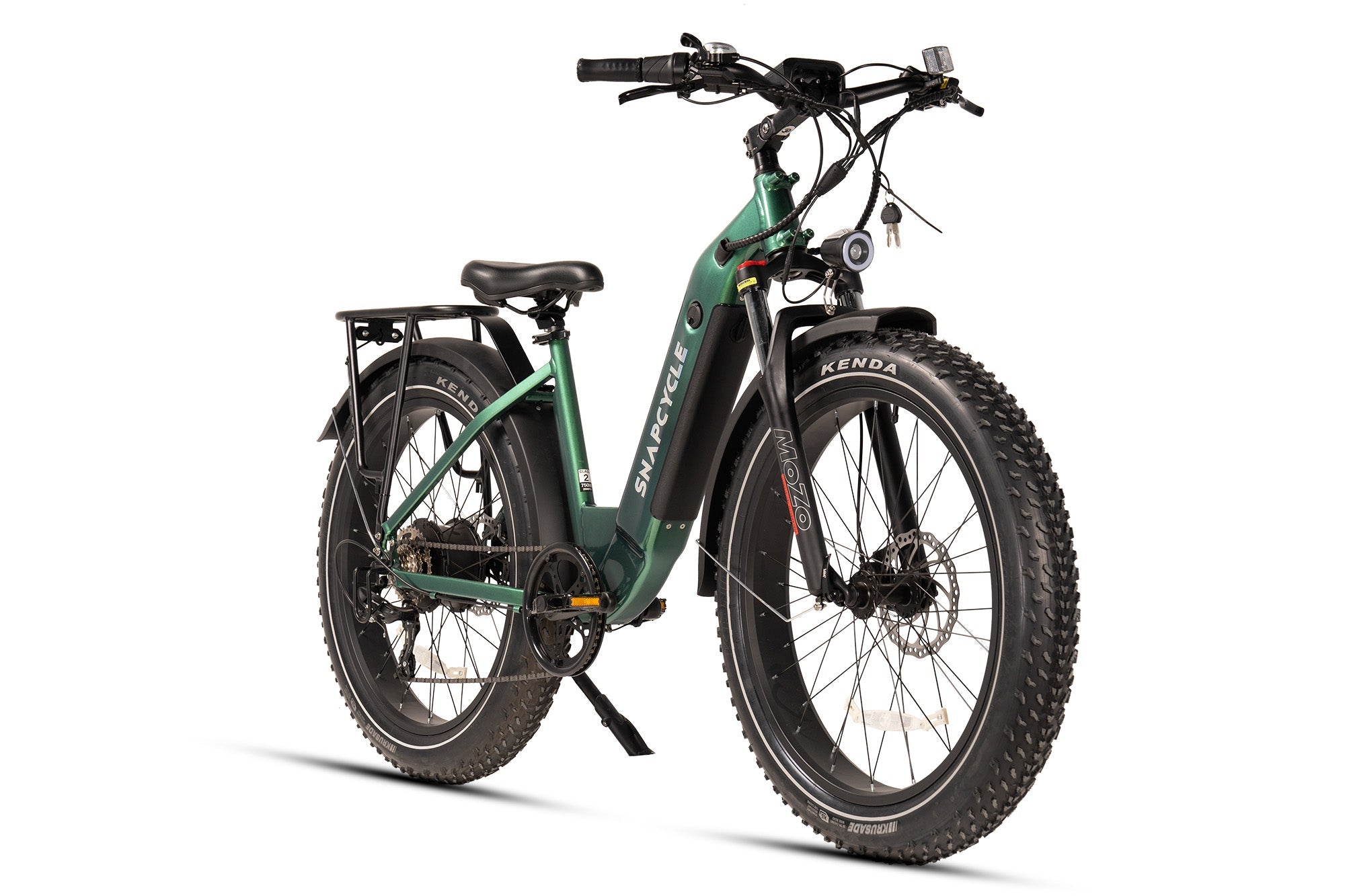

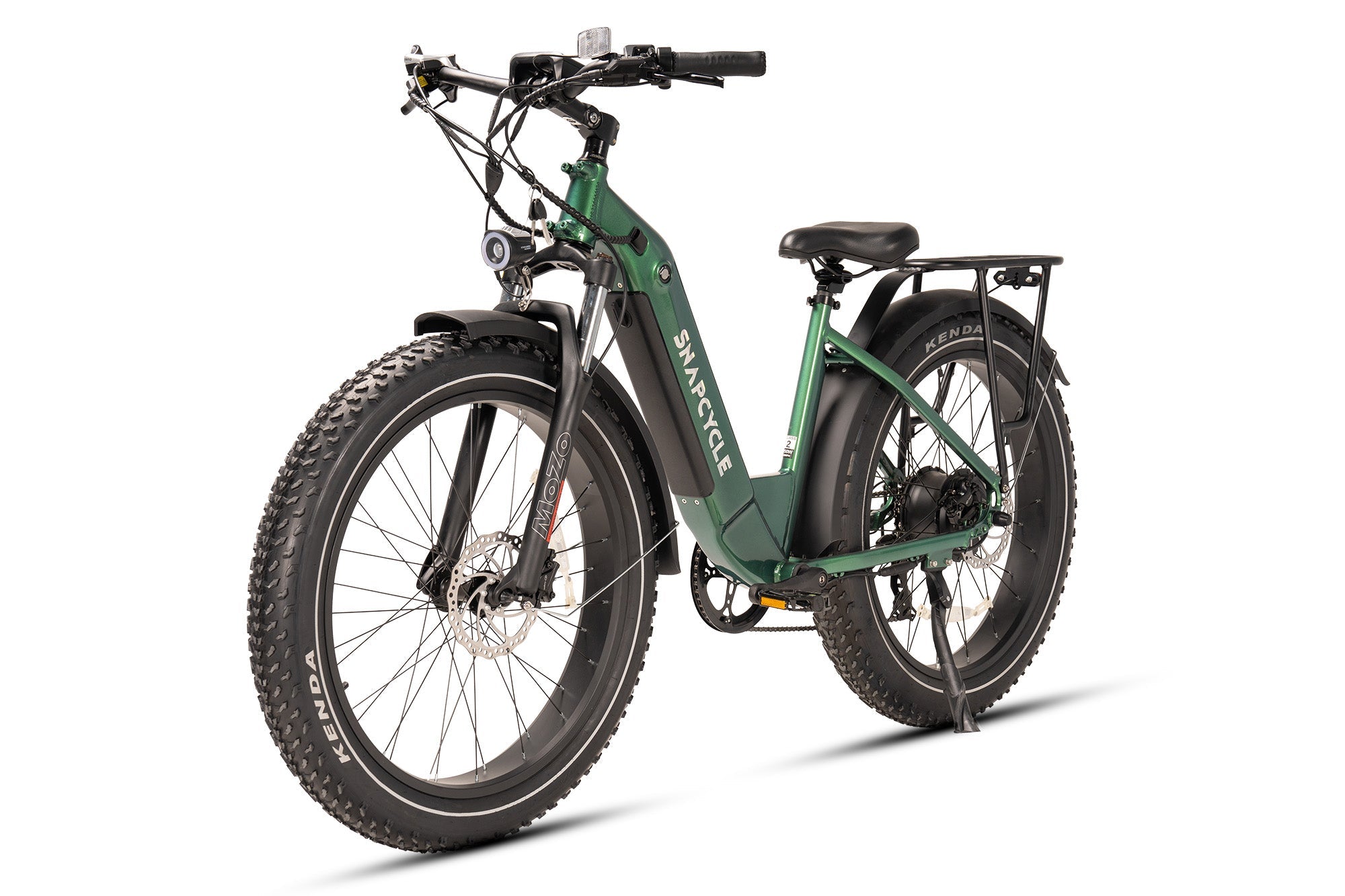

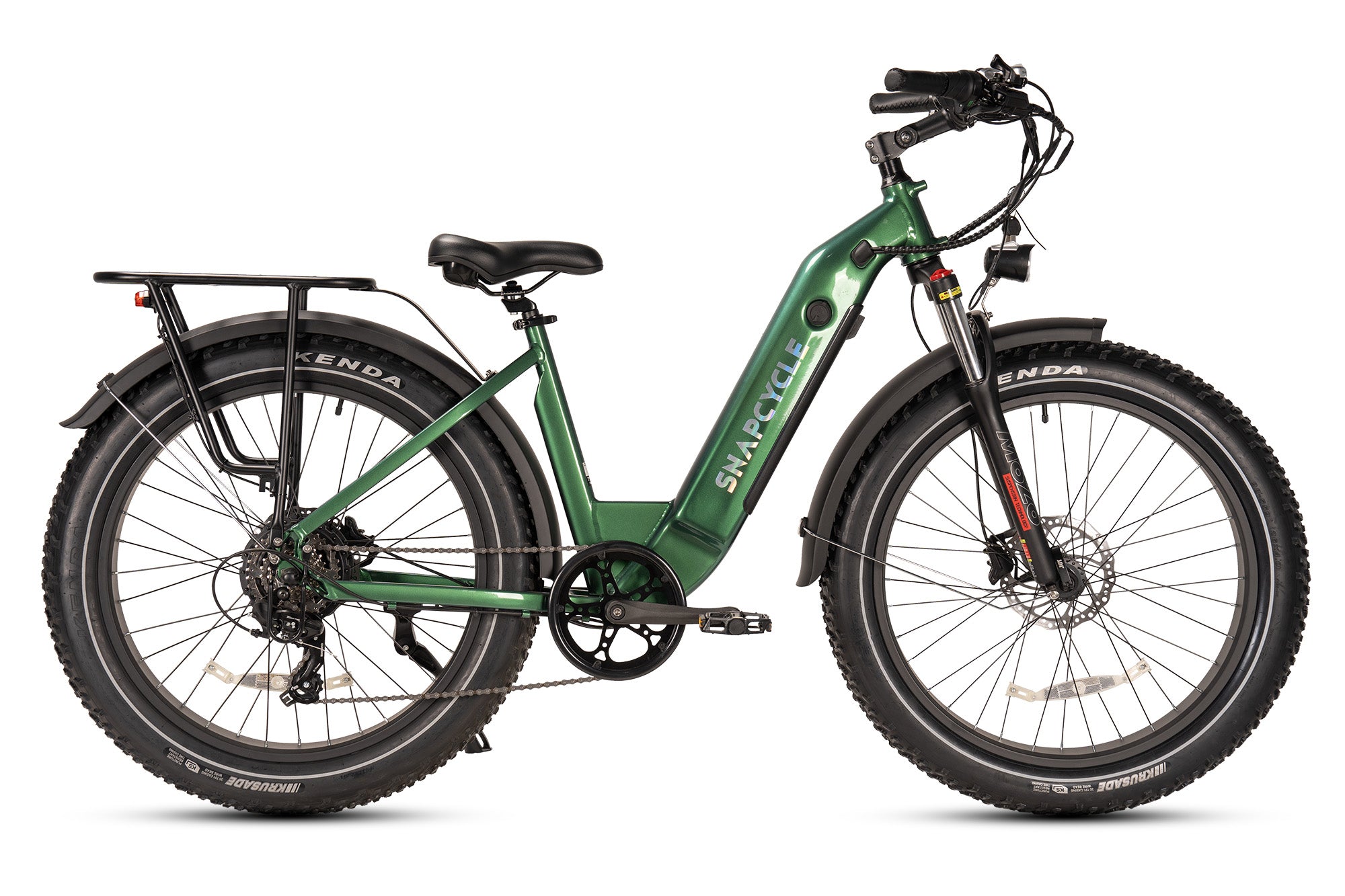

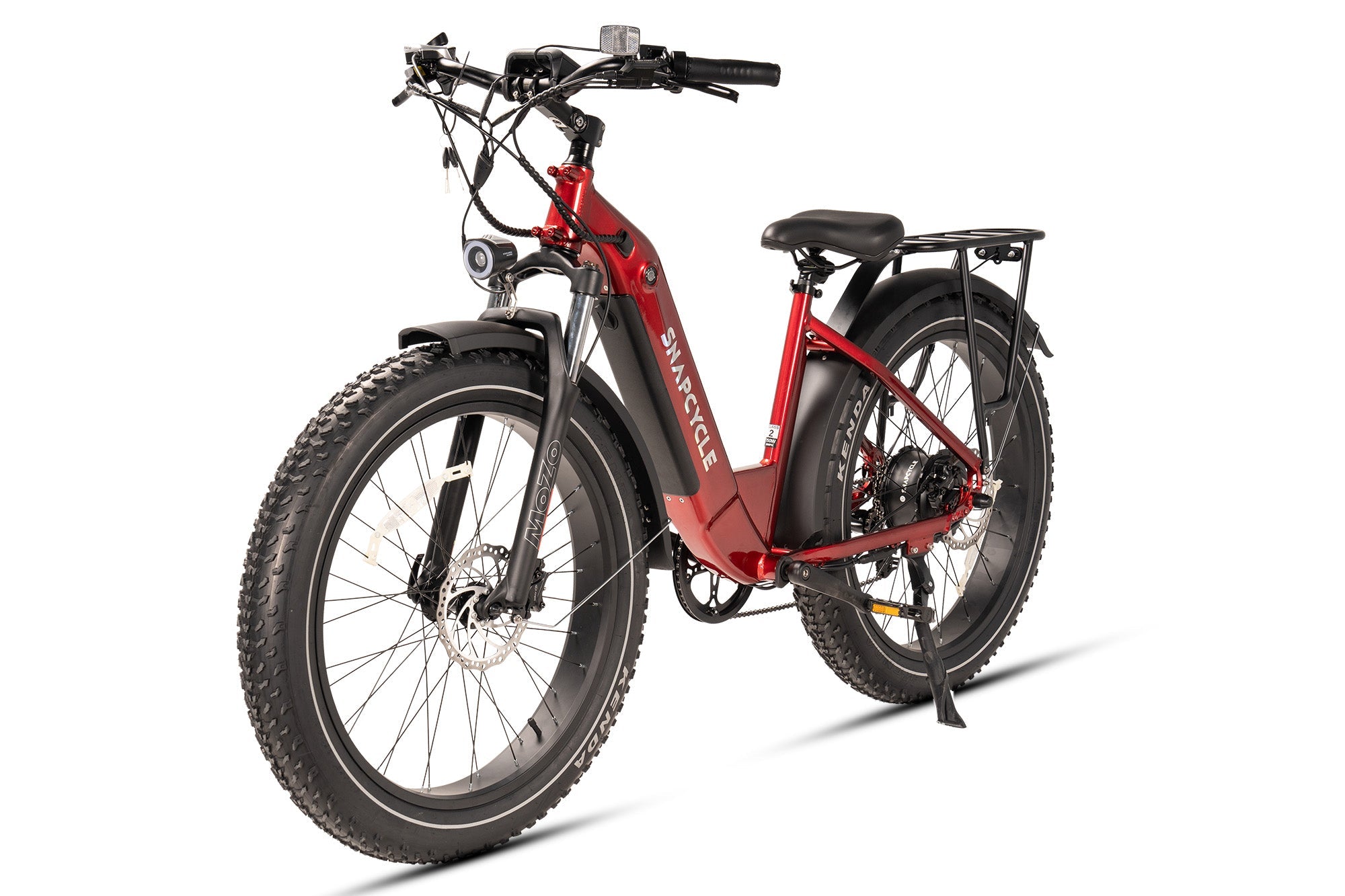

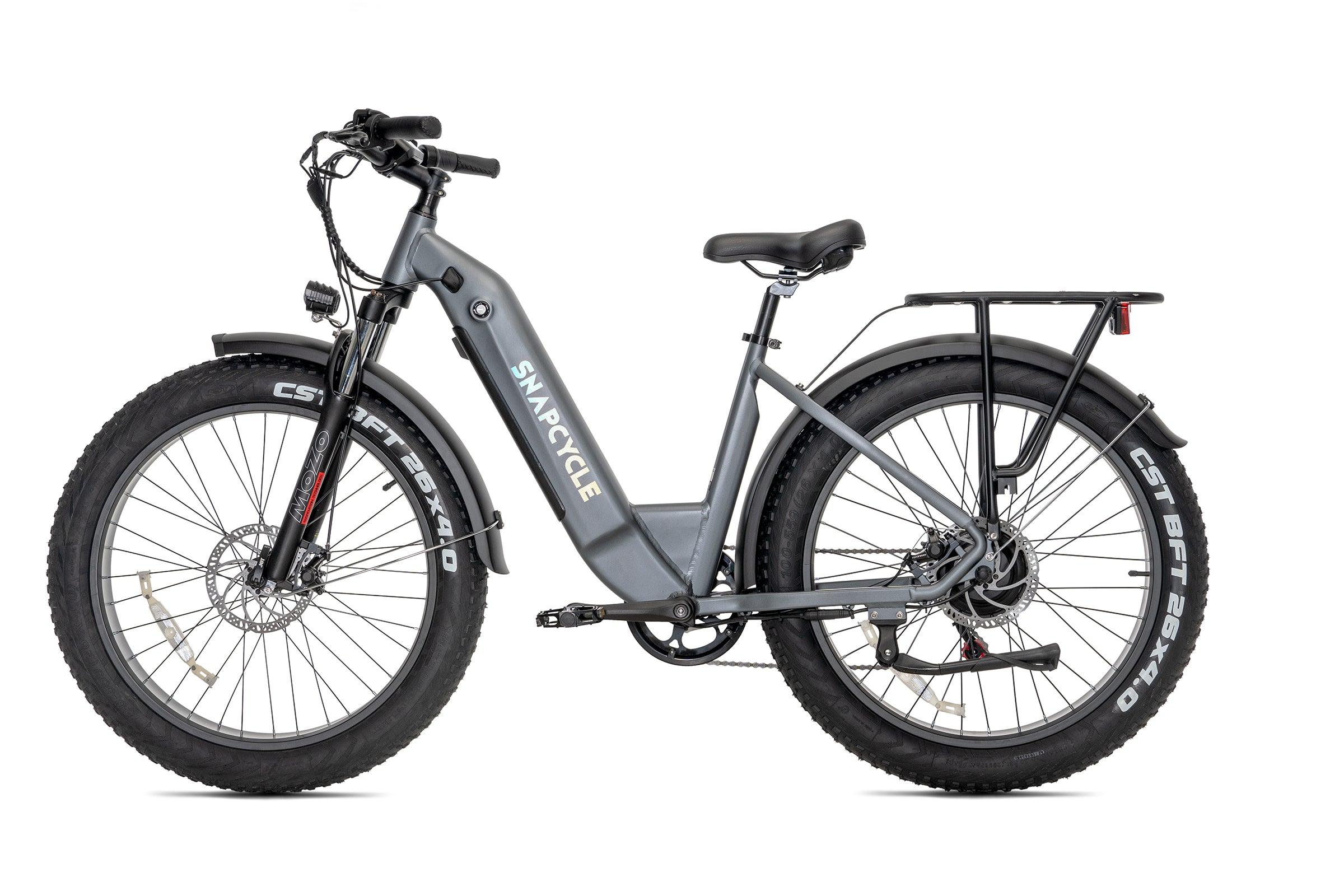

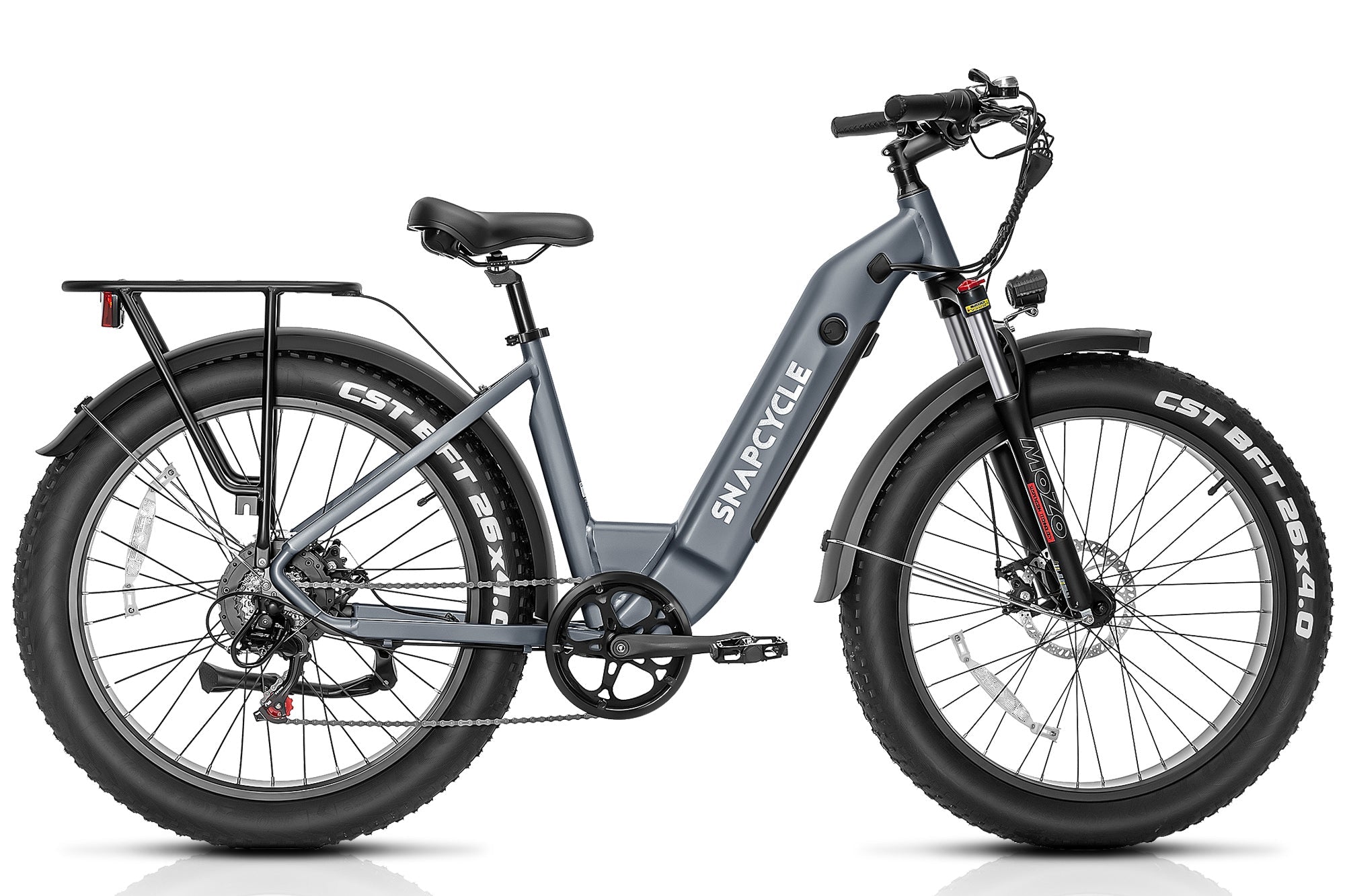

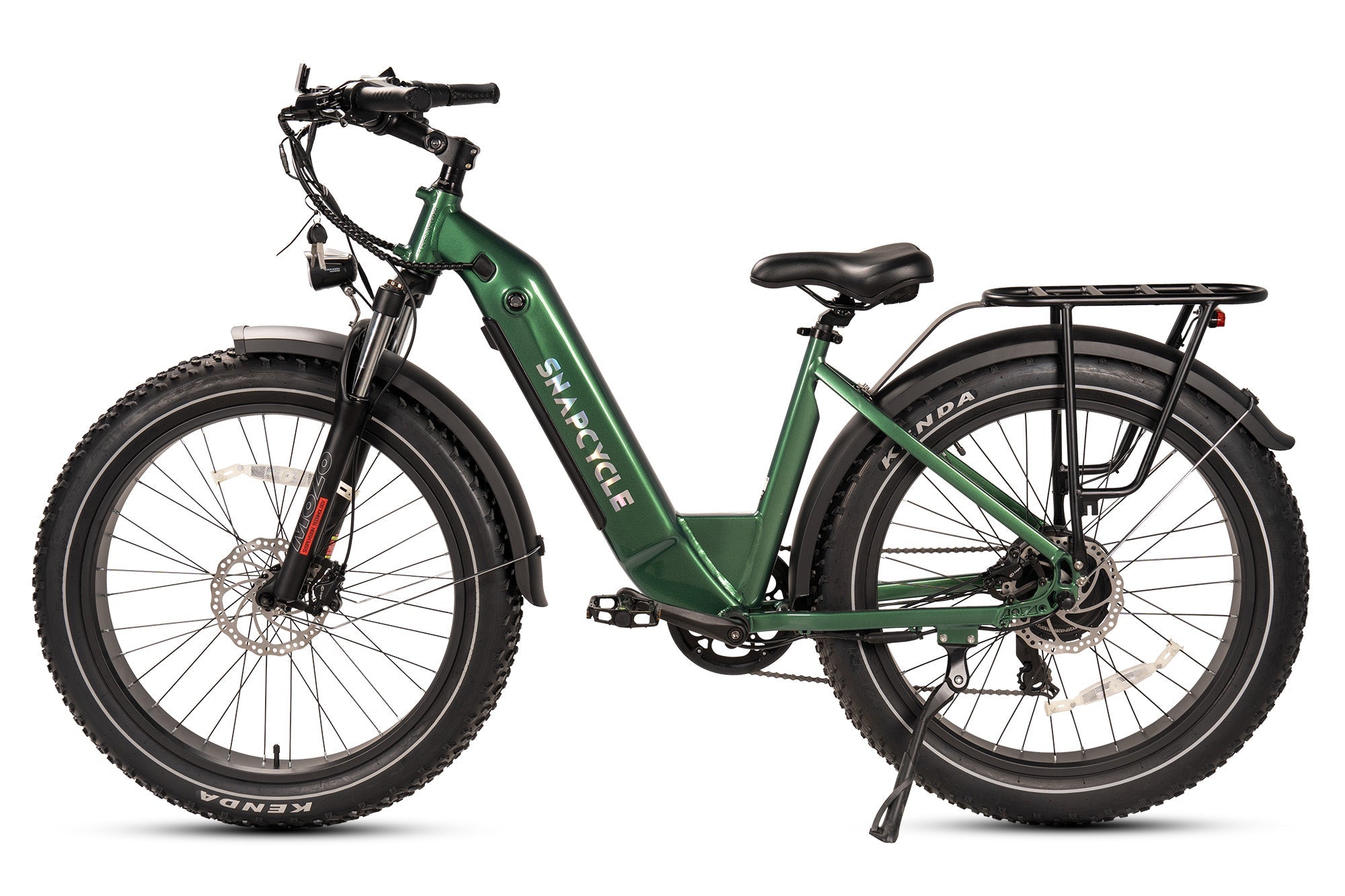

Snapcycle R1 Step-Thru （ Scratched ）Shop Open Box Deals
high-speed geared hub motor & the step-thru design are perfect for riders of all ages. Get yours today from ATB Bike and elevate your ride!
ATB Bike is an official authorized service center for Snapcycle. We refurbish and repackage returned electric bicycles, offering the same two-year warranty as new ones. The paint on this bike is scratched in a few places, but otherwise, it's just like new and has seen minimal use. It's now discounted by $200 and available on a first-come, first-served basis, but please note that the quantity is limited.
Ships in 2-3 days from California.
750W Brushless Geared Hub Motor
With 750W sustained, 1200W peak power and 85Nm of torque at your disposal, the high-speed brushless geared hub motor can help you conquer the most rugged terrains easily.
48V 14Ah Samsung Lithium Battery
Our batteries are rated 48V-14Ah and are made of premium Samsung INR18650-35E / LG INR18650-MJ1 cells, which are renowned for their long lifespans and excellent performance. The battery management system (BMS) complies with EN ISO 13849-1:2015 standards and comes with temperature protection features to enhance its durability and safety. With each charge, you'll get to enjoy up to 45 miles of range on pedal-assist mode, and up to 30 miles on pure electric power mode.
Upgraded to hydraulic brakes
The sensitive dual-piston hydraulic braking system comes with metal-ceramic brake pads, and 180mm front and rear disc rotors. It also has automatic caliper centering features and can provide smooth and effective braking even in the harshest conditions.
Front Suspension Fork
The spring suspension fork has 80mm of travel, with preload adjustment and lockout. It is able to dampen the roughness of the terrain, providing a smoother, more enjoyable ride.
Quick & Smart 48V 3 Amp Charger
It only takes less than 5 hours to fully charge the battery, which greatly shortens the time between rides to keep up with the rapid pace of your commuting demands. This fast charger is certified to UL standards and its safety and reliability are guaranteed.
TECHNICAL HIGHLIGHT
Backlit LCD Display
The intuitive display provides real-time information about your ride, including mileage, battery level, speed and power. It also provides diagnostic information to its users.
4” Fat Tire
4” Fat Tires provide excellent grip and traction on all terrains. Whether it’s mud, sand, gravel, grass, or snow, our fat tires will ensure a smooth and safe riding experience.
Fully Integrated Battery
The sleek-looking frame holds an integrated battery that provides you with all the fuel you will need to power your bike through the toughest terrains.
Shimano Derailleur
High quality Shimano gears and derailleurs enable you to maintain a comfortable pedalling speed, regardless of road conditions.
Solid Rear Rack
The sturdy rear rack with a vertical pillar is capable of carrying loads up to 110 lbs. You could bring a pet or a child along for a ride in the morning.
LED Headlight
It’s getting dark. Turn on your headlight to illuminate the road ahead. It also helps with your visibility at night.
Geometry
- A. Total Length 74.8"
- B. Handlebar Height 42.5"
- C. Wheelbase 45.3"
- D. Minimum Seat Height 28.7"
- E. Maximum Extension 9.1"
- F. Chain Stay Length 19.3"
- G. Standover Height 18.7"
- H. Top Tube Length 23.2"
- I. Wheel Diameter 28.0"
- J. Head Tube Length 4.7"
- K. Handlebar Length 26.0"
Specification
- Battery 48V 14Ah Samsung 35E / LG MJ1 lithium battery
- Range 30~45 Miles
- Electric Bike Class Class 2 (configurable to Class 3)
- Hub Motor 750W brushless geared motor, 1200W Peak
- Charging Time 4 ~ 5 Hours
- Total Payload Capacity 275lbs
- Recommended Rider Heights 5'2" ~ 6'4"
- Charger US standard 3.0A fast charger, UL Certified
- Controller 48V / 22A 12-Tube
- Display Adjustable-Angle, Backlit, Grayscale 3.2'' LCD
- Frame Aluminium 6061
- Lights Integrated front light and rear light with brake light, LED
- Pedal Assist Intelligent 0~5 level pedal assist
- Weight 72lbs
Components
- Brake CalipersHydraulic, Dual-Piston, HD-E500
- Brake LeversAluminium alloy comfort grip levers with motor cutoff switch
- Crank Set48T, 170mm Aluminium Alloy, Double-Sided Plastic Guard
- FenderFull coverage front and rear
- FreewheelShimano MF-TZ500-7 14-28T Freewheel
- GripsErgonomic, Stitched Imitation Leather
- HeadsetSemi-Integrated, Sealed Cartridge, 1-1/8" Straight
- PedalsNeco Aluminum Alloy Platform with Reflector
- SaddleJustek soft foam saddle
- Seatpost ClampQuick-Release type
- SpokesStainless Steel, 12 Gauge, Black with Silver Nipples
- Brake Rotors180 mm front and rear
- ChainKMC chain with 122 chainlinks
- Derailleur7-Speed Shimano Tourney
- ForkMOZO Spring Suspension, 80mm Travel, Lockout and Preload Adjustment
- Gearing1 x 7 Speed
- HandlebarAluminum Alloy, Mid-Rise, 700mm Width, 31.8mm Bore
- KickstandHeavy-duty aluminum stand
- RimsAluminum Alloy, 26 inch, Double Wall
- SeatpostAluminum Alloy, 320mm x 27.2mm Dia
- ShifterShimano SIS Index Thumb Shifter
- TireCST/Kenda 26”X4.0” puncture-resistant fat tires
FAQ
What is the price match guarantee?
If you find a lower price from another online store for the same item(s), we will gladly match that price upon purchase.
How long until I receive my bike?
The order will be process in 48 business hours. Once the order has shipped, a shipping confirmation email will be sent to your email. We use FedEx or UPS for shipping. Please allow 2~7 business days for the shipment to arrive to your designated location. Any delivery dates provided by Mokwheel are estimates.
Do I need a license for riding Ebike?
No, you don’t need a license for riding Ebike. Please read Safety Instructions carefully for your safety.
Are your bikes waterproof?
Our bikes are water and dust resistant, rated IP54. This means that they can be ridden in the rain, but we would still advise against leaving them exposed to the elements. We would also recommend cleaning your bikes with a damp cloth instead of hosing them down, to prevent damage to any components.
How to clean the Ebike?
We recommended you to take off the battery. Otherwise, you can clean the E-bike as the normal bike.
