$200.00 off

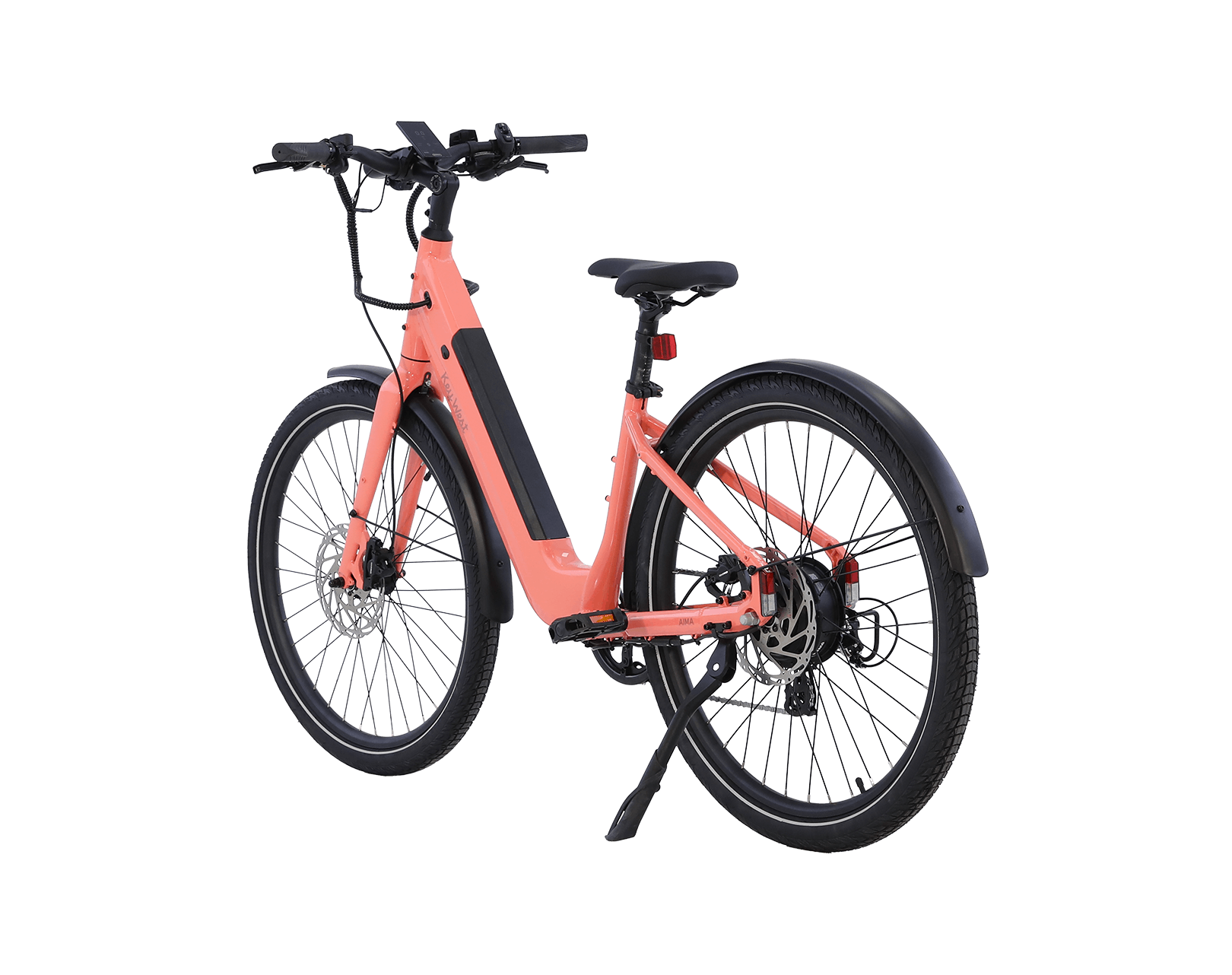

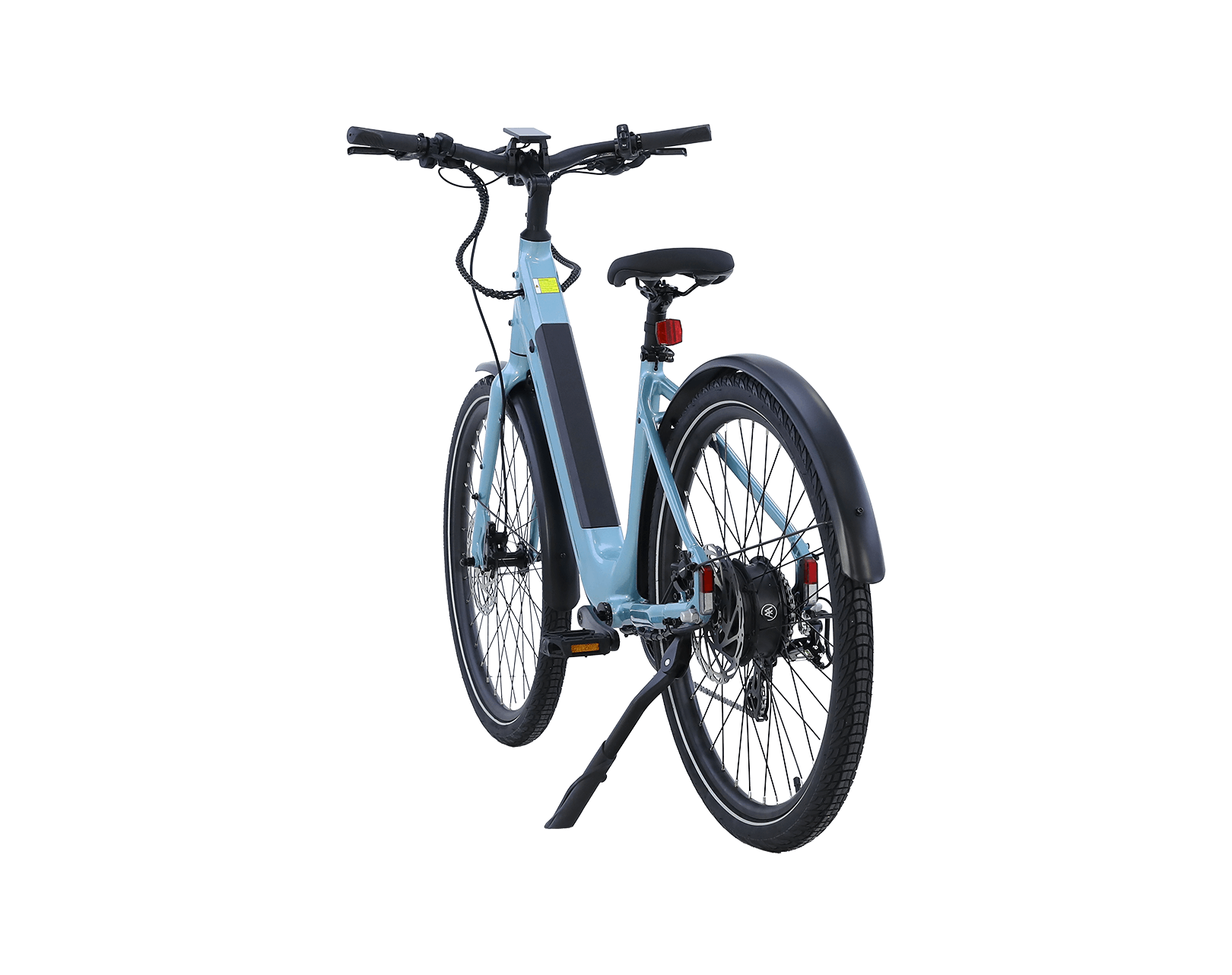

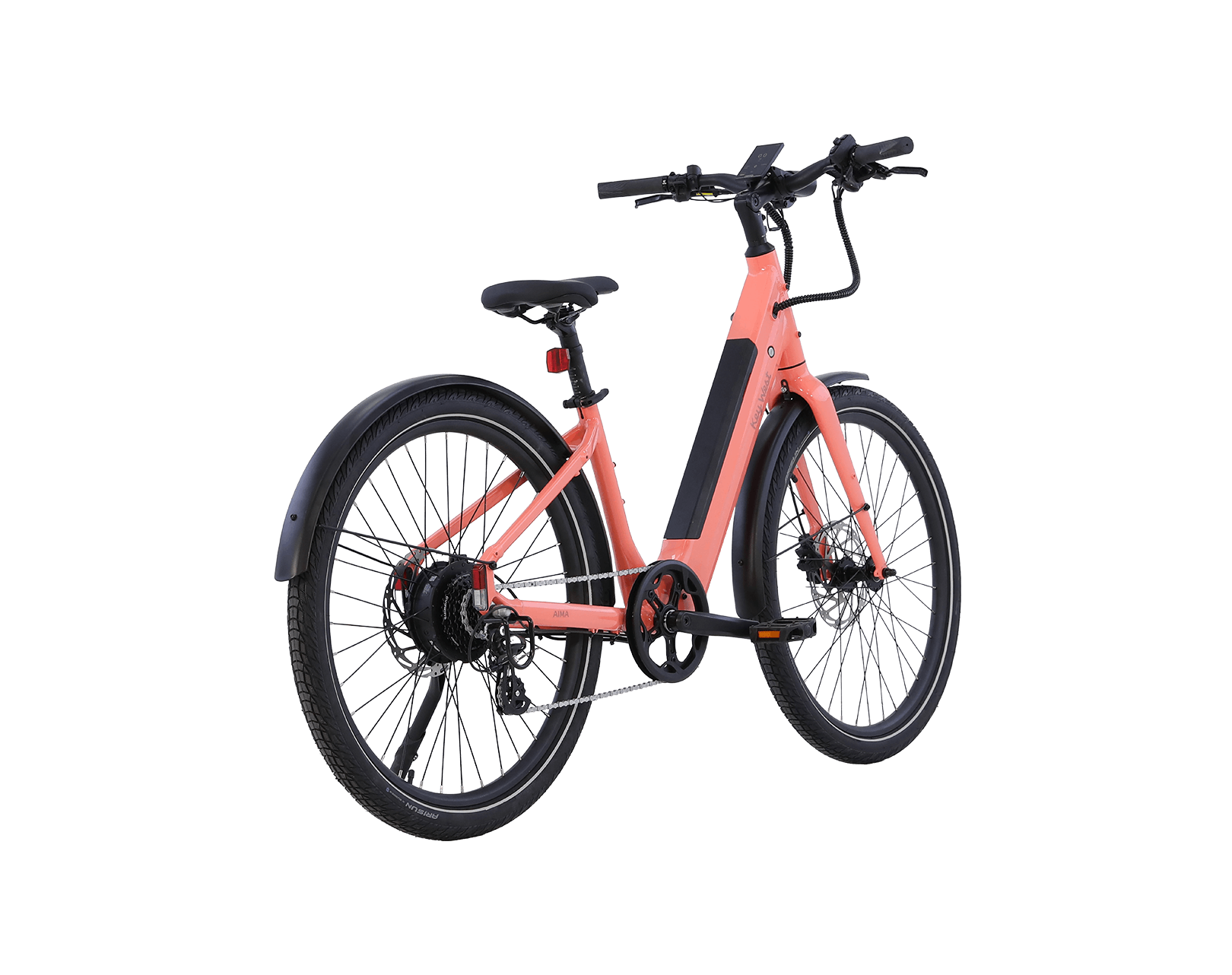

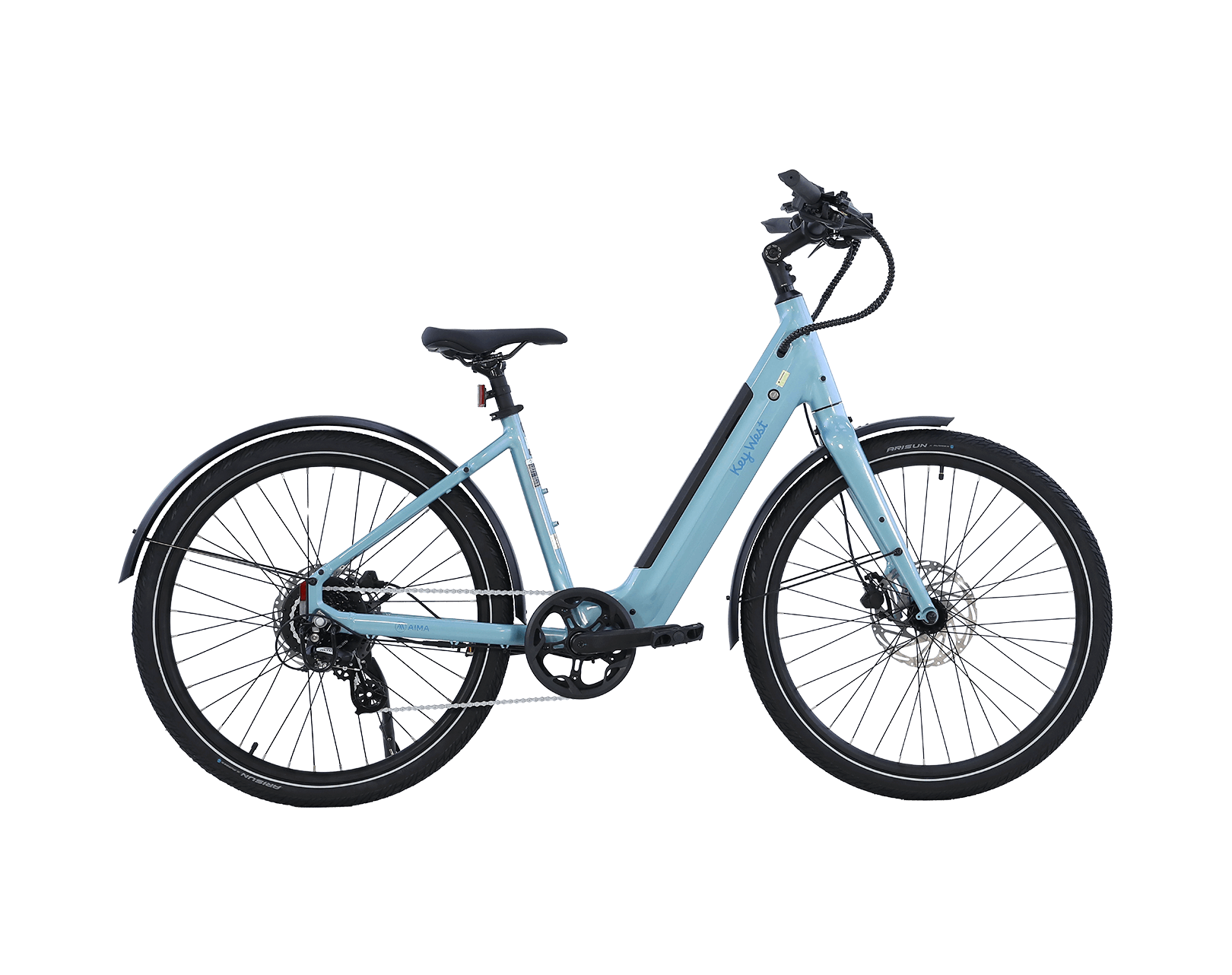

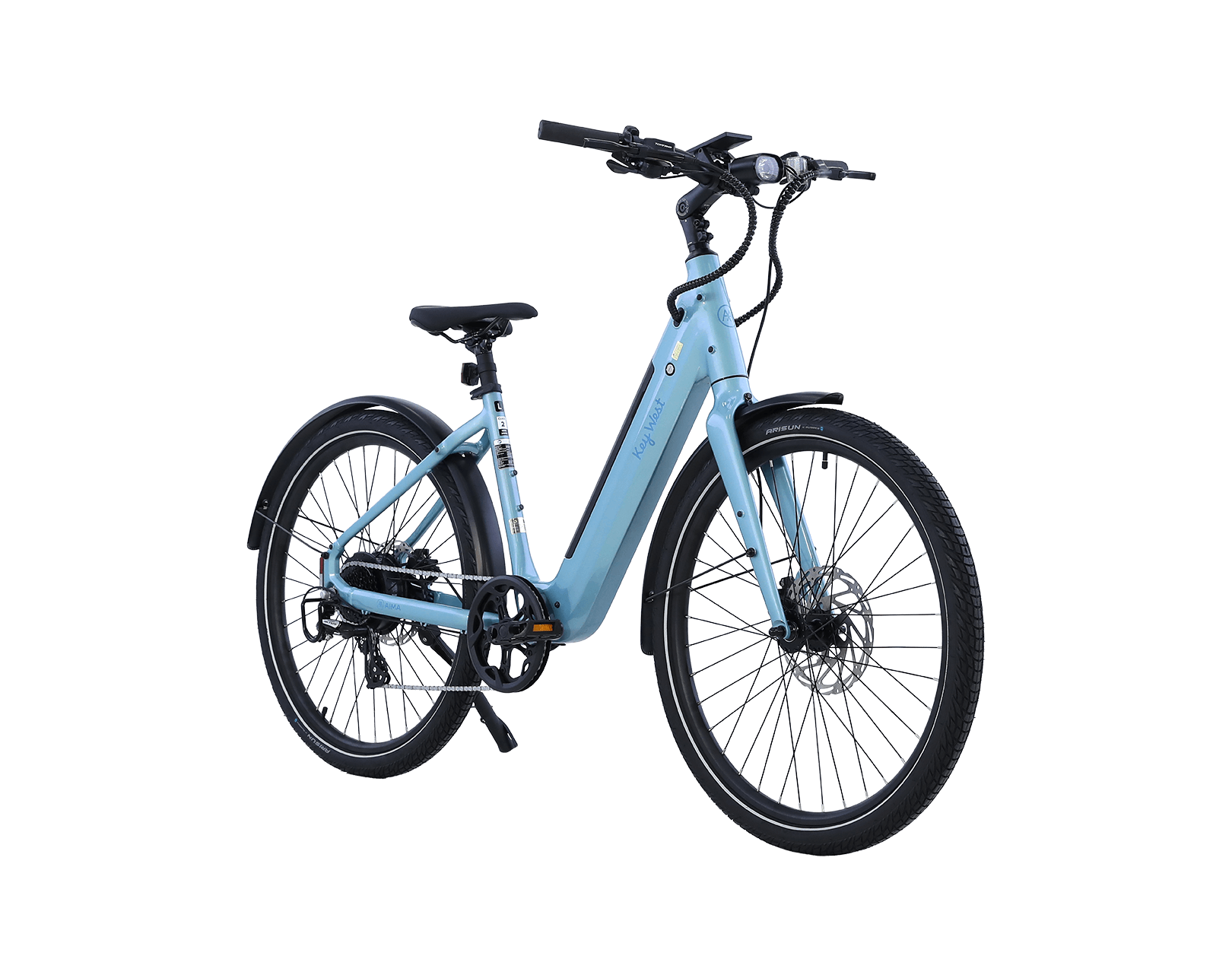

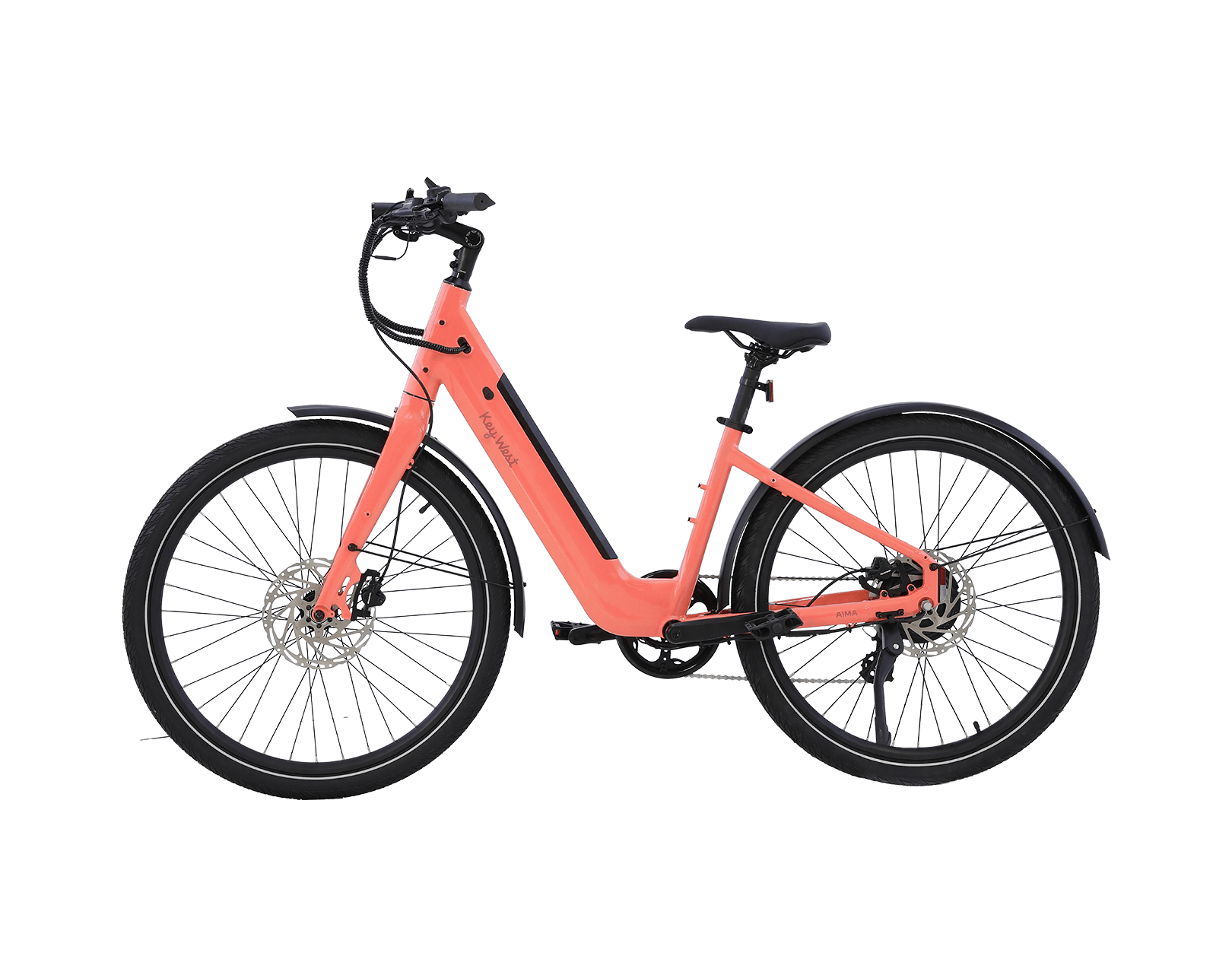

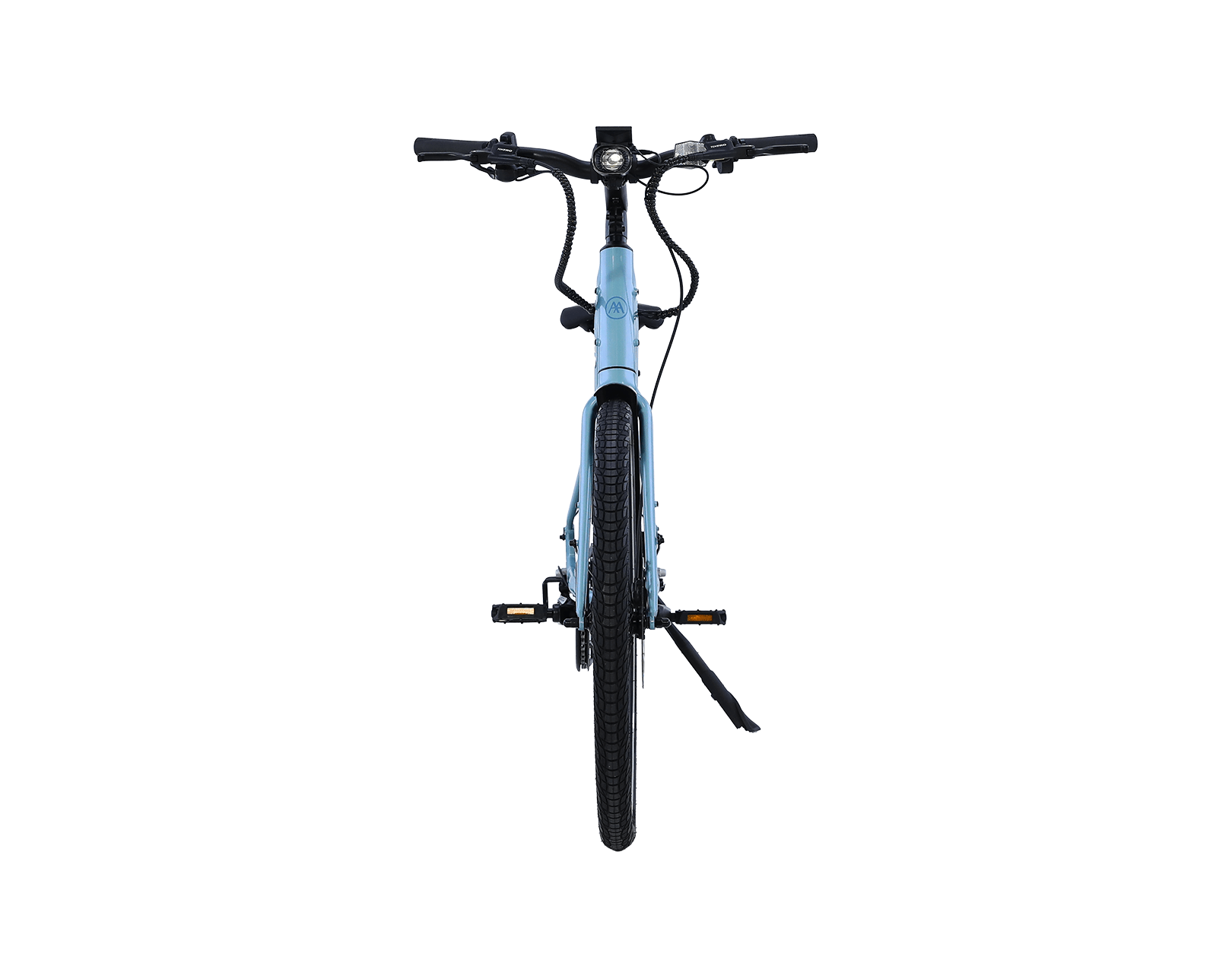

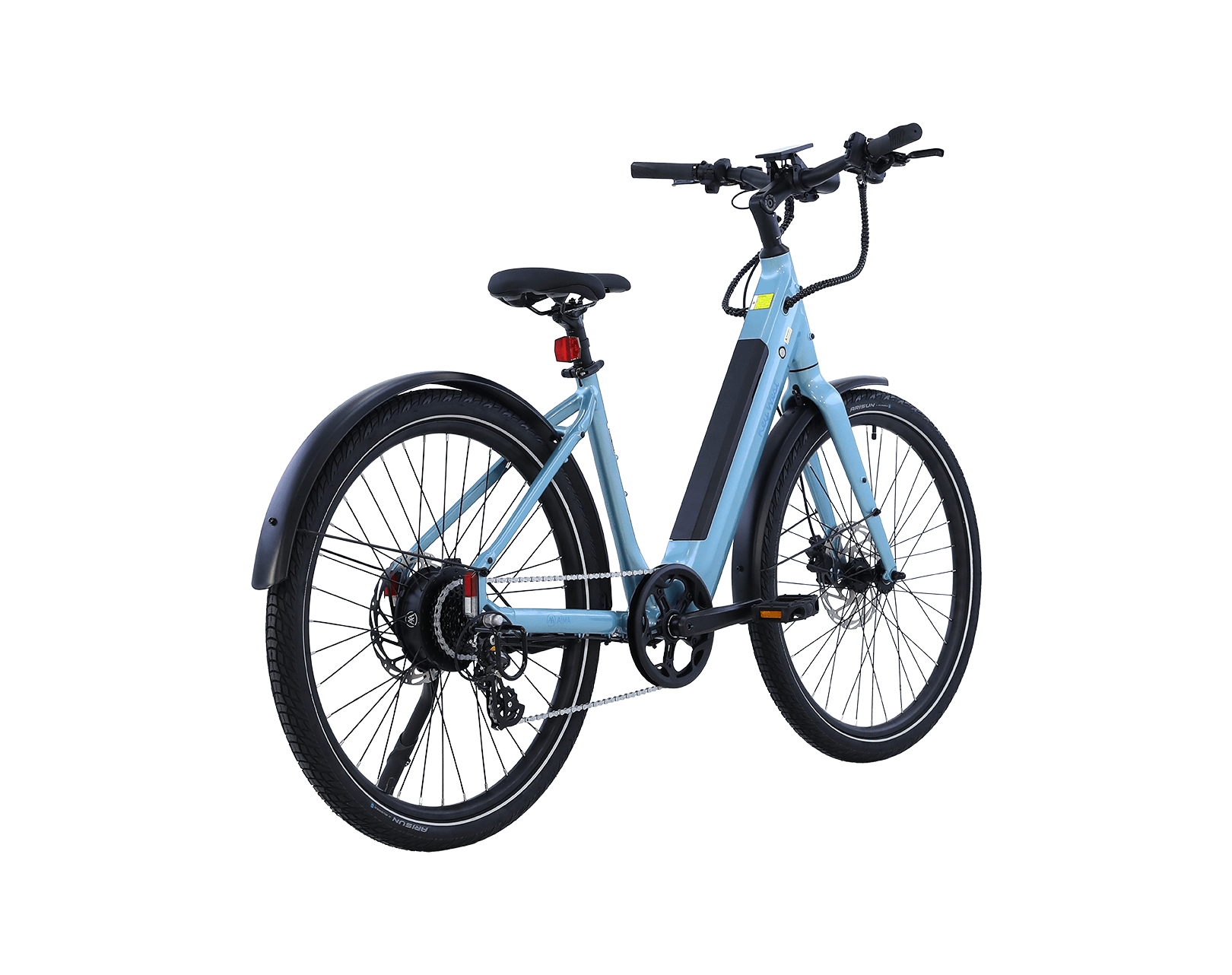

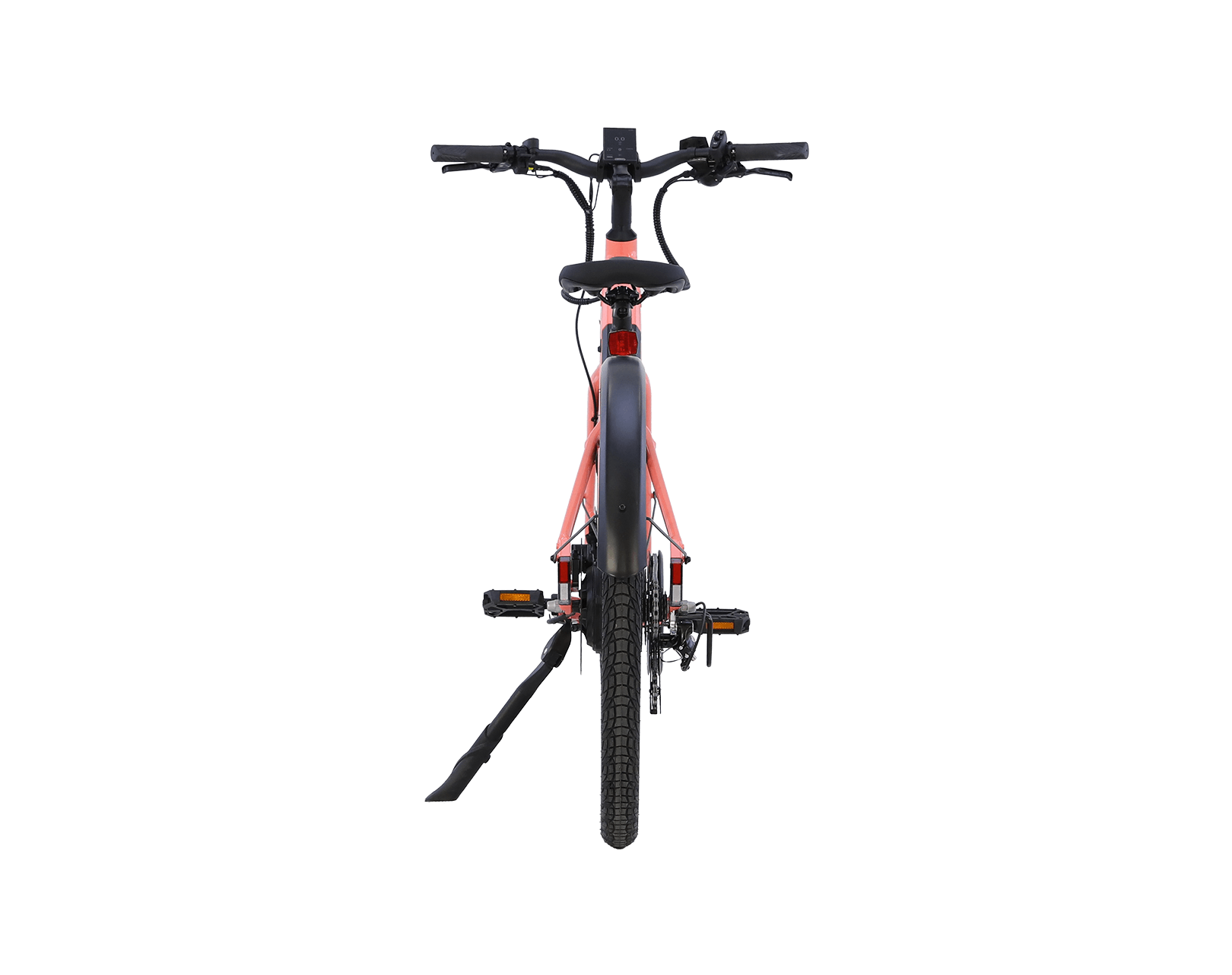

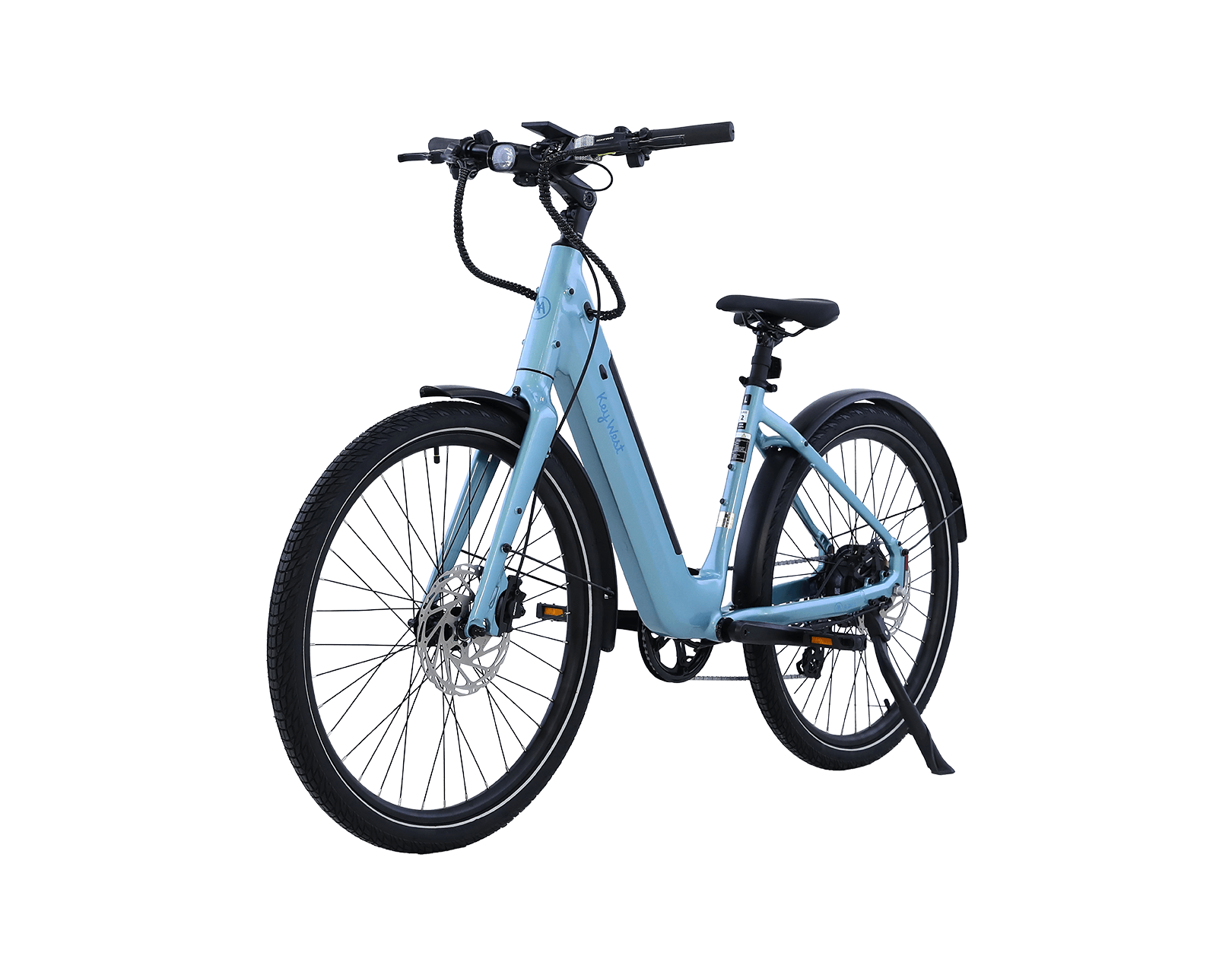

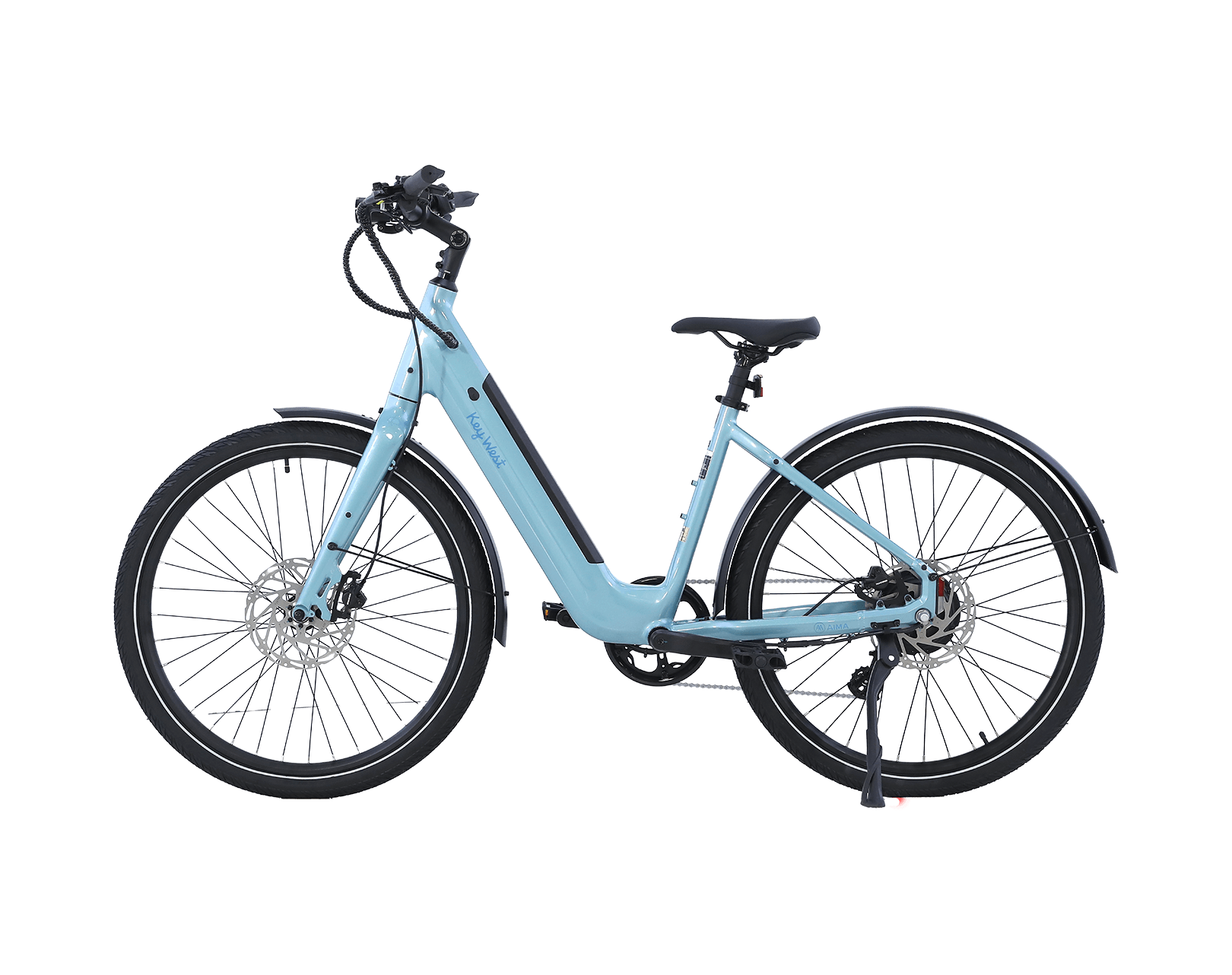

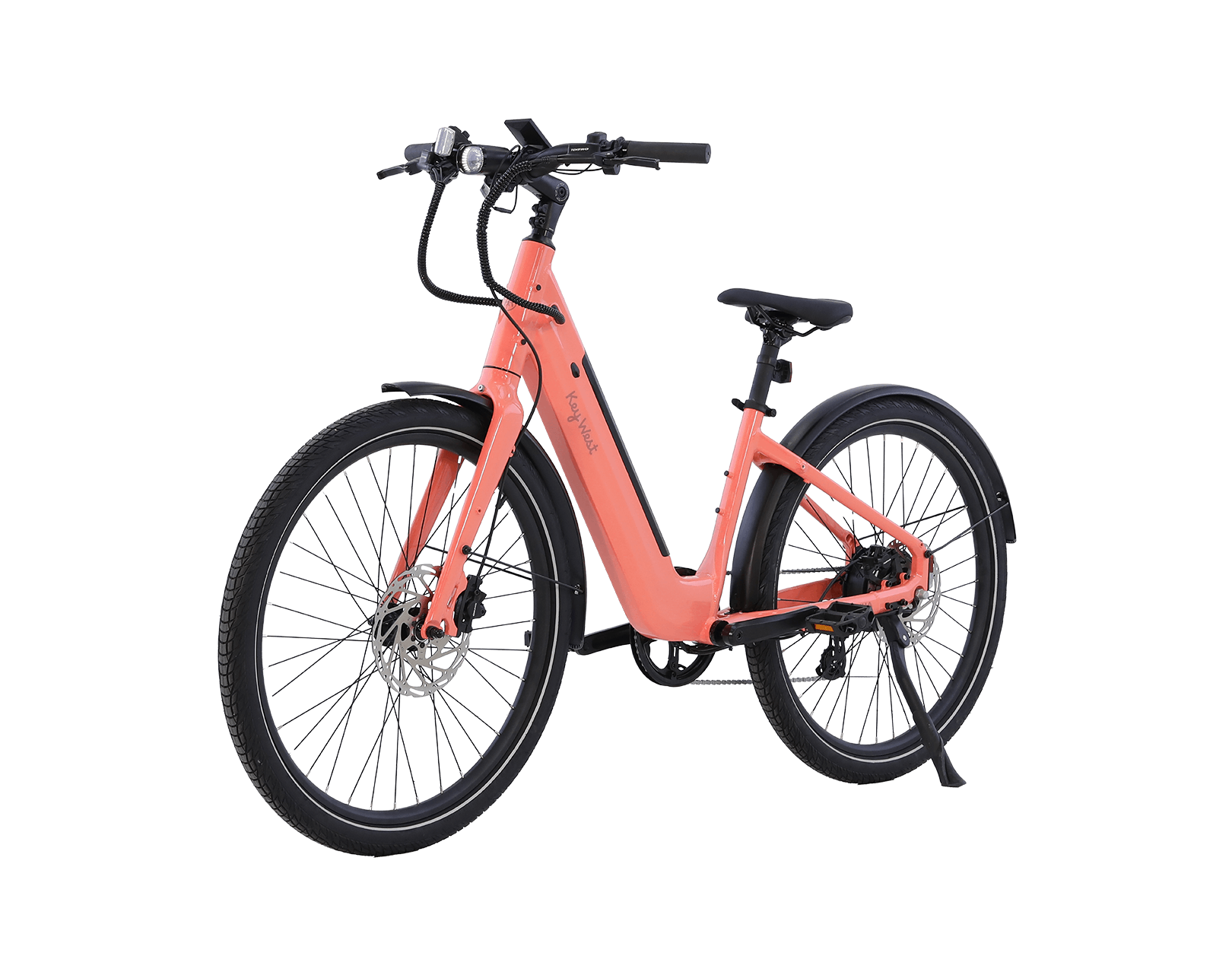

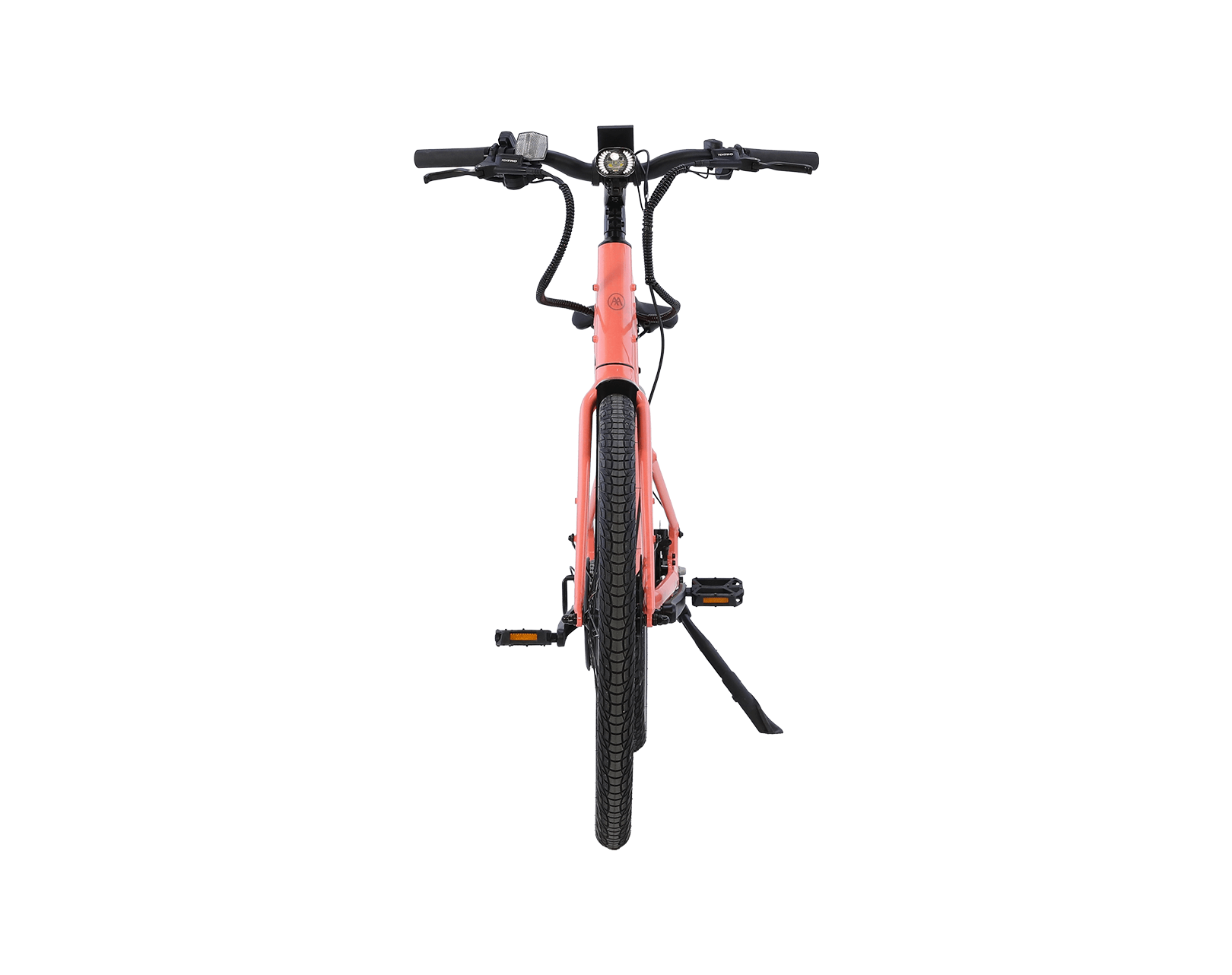

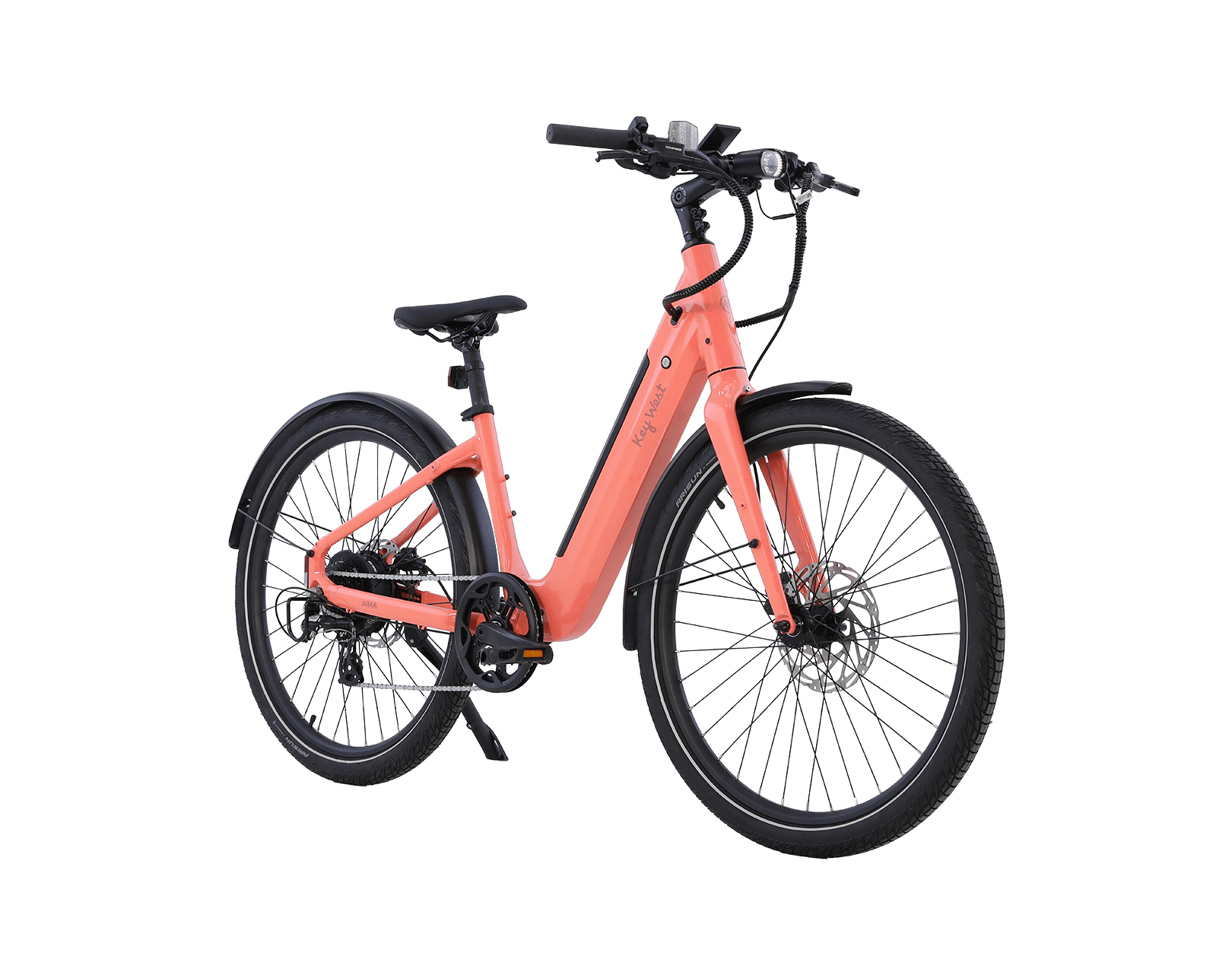

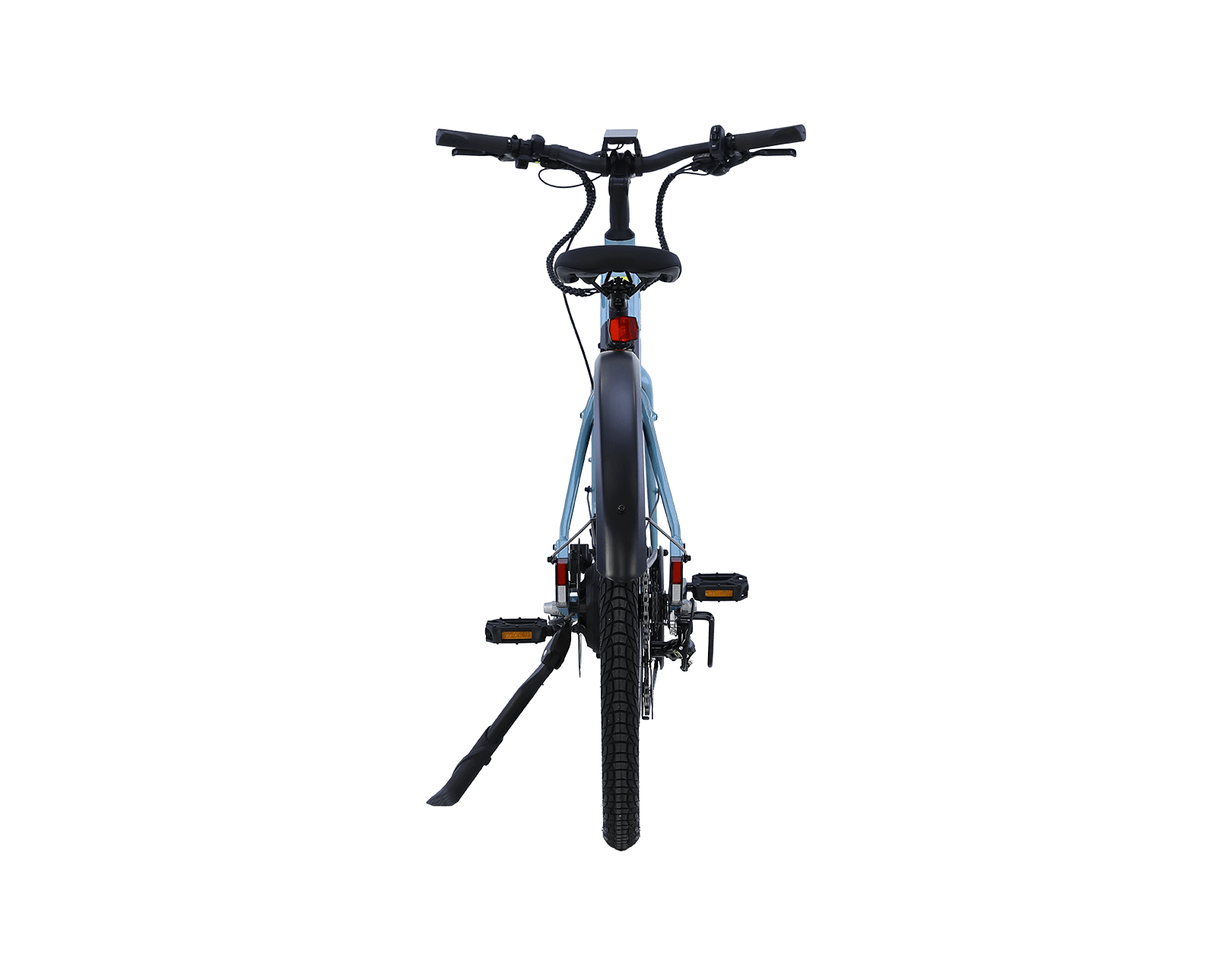

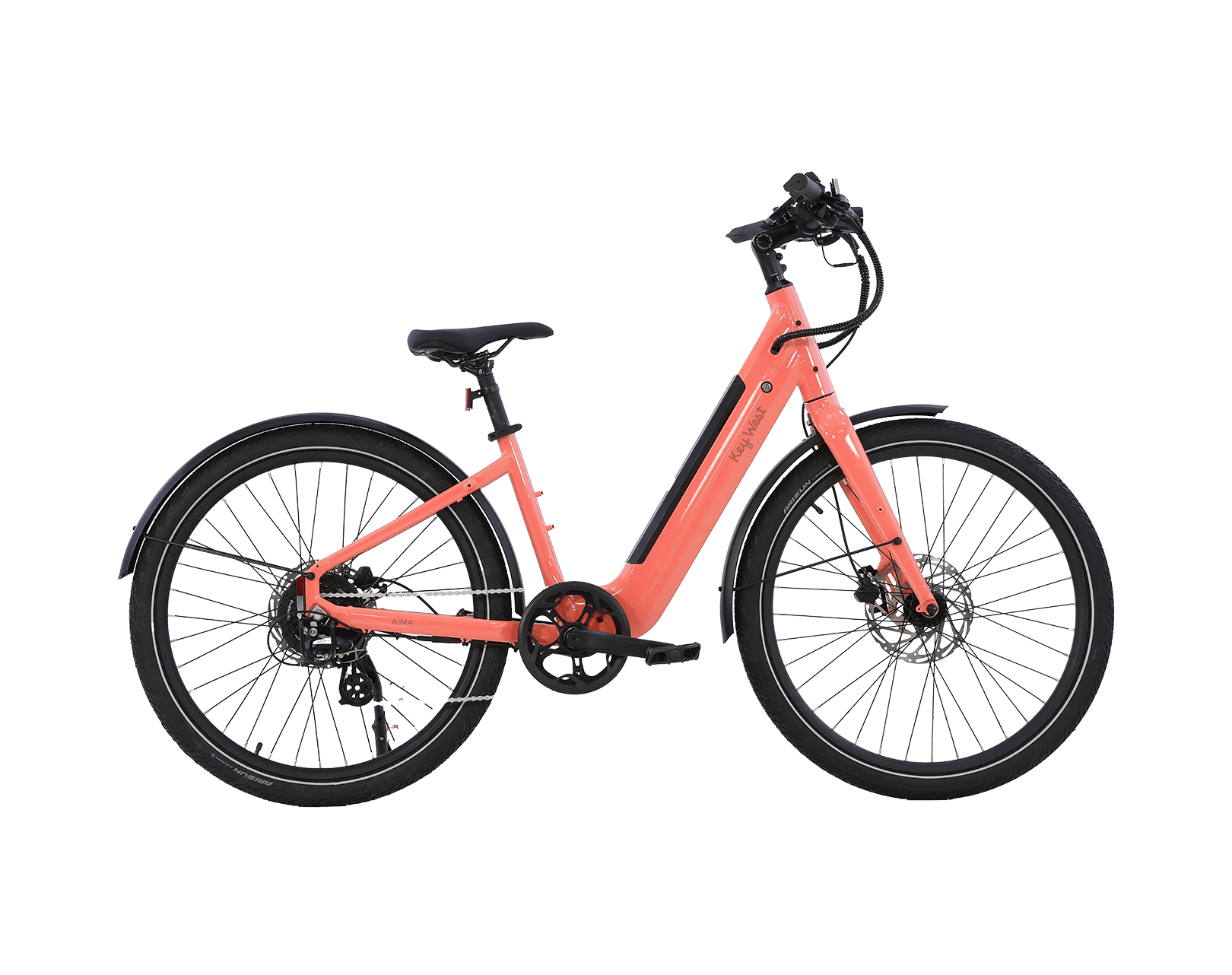

AIMA Key West Electric Bike
$1,599.00
$1,799.00
By AIMA
Meet the Key West Ebike — 500W, 48V Brushless Rear Hub Motor of power, up to 24 to 50 Miles of range, speeds up to Up to 28 MPH (Pedal Assist), 20 MPH (Throttle), ready for the street and the trail.
Why You'll Love It
- Effortlessly light, stylish, and built for every ride - from beachside cruises to daily commutes
- Lightest ebike in AIMA's lineup at 54 lbs for easy transport and maneuverability
- Brand new BAFANG TFT Smart Display with navigation and incoming alerts
- Integrated lighting with turn signals keeps riders visible and safe
- Oversized 203mm brake rotors provide superior stopping power
- Adjustable stem and ergonomic grips for personalized comfort
Specifications
| Frame Sizes | Regular: 4'11"-5'10"; Large: 5'4"-6'1" |
| Motor | 500W, 48V Brushless Rear Hub Motor |
| Throttle | Throttle on Demand |
| Battery | Removable Internal Lithium-ion 48V, 12.8Ah (614Wh) |
| Charger | 48V, 3 Amp Fast Charger, ~5 hours to full charge |
| Top Speed | Up to 28 MPH (Pedal Assist), 20 MPH (Throttle) |
| Range | 24 to 50 Miles |
| Pedal Assist | 5 PAS Levels |
| Pedal Sensor | Customizable w/ Torque & Cadence Modes |
| Frame | 6061 Single-Butted Aluminum Alloy with Internal Battery |
| Weight | 54 lbs. (without fenders) |
| Weight Limit | 320 lbs. |
| Stem | Threadless, 31.8mm, 10-80 Rise (S: 90mm | M: 110mm) |
| Crankset | 170mm w/ 46T Chainring |
| Shifter | Shimano 8 Speed |
| Cassette | 8 Speed, 12-32T |
| Chain | 8 Speed |
| Brakes | Tektro Hydraulic Disc Brakes, 203mm Rotors |
| Tires | 27.5" x 2.1" |
| Rims | Double Wall Aluminum Alloy |
| Spokes | Black Stainless 12G (Front/Rear) |
| Tubes | Butyl Rubber |
| Front Hub | Aluminum Alloy Disc |
| Display | BAFANG C010 4.0" TFT Smart Display w/ Navigation, call & text alerts |
| Lighting | Integrated Headlight, Tail Light, Turn Signals |
| Saddle | AIMA Lightweight Performance Saddle |
| Seatpost | Aluminum Alloy, 30.9mm 2-Bolt Clamp, 300mm |
| Handlebars | Aluminum Alloy Double Wall, 31.8mm, 680mm |
| Grips | Ergonomic Comfort |
| Pedals | 9/16" Alloy Platform |
| Kickstand | Aluminum Alloy |
| Fork | Lightweight Rigid Aluminum Fork |
| Headset | Sealed Bearing Headset |
| Seat Clamp | 34.9mm Quick Release |
| Rear Rack | MIK HD |
| Certification | UL2849 Certified |
| Warranty | 2 Years |
Rider Reviews
★★★★★
Awesome bike!
I test rode this bike a couple of weeks ago and ordered one right away. It came in today and I couldn't wait to ride it! It is so comfortable and smooth! Whisper quiet compared to my Big Sur Sport, which I also love, and still has plenty of power! Very lightweight and easy to maneuver. Even more addicted than I was before if that's possible! Sized just right for me at 5'3". Amazing bike!
— Christine Navarre
Reviews originally published on the manufacturer's official AIMA product page.
ATB Bike is an authorized AIMA dealer. Ships from the USA with full manufacturer warranty and US-based support. Questions before you buy? Talk to our team.
