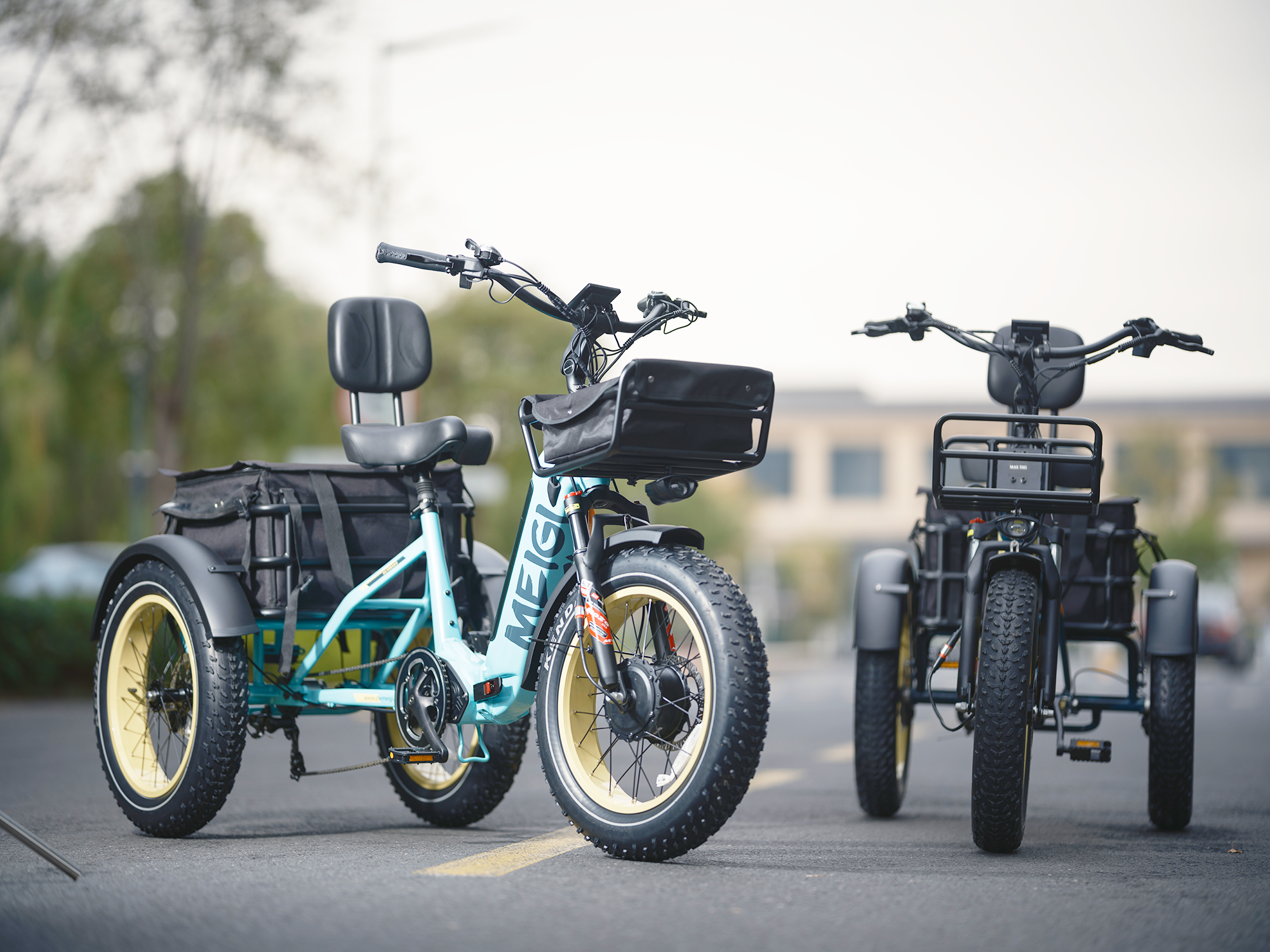

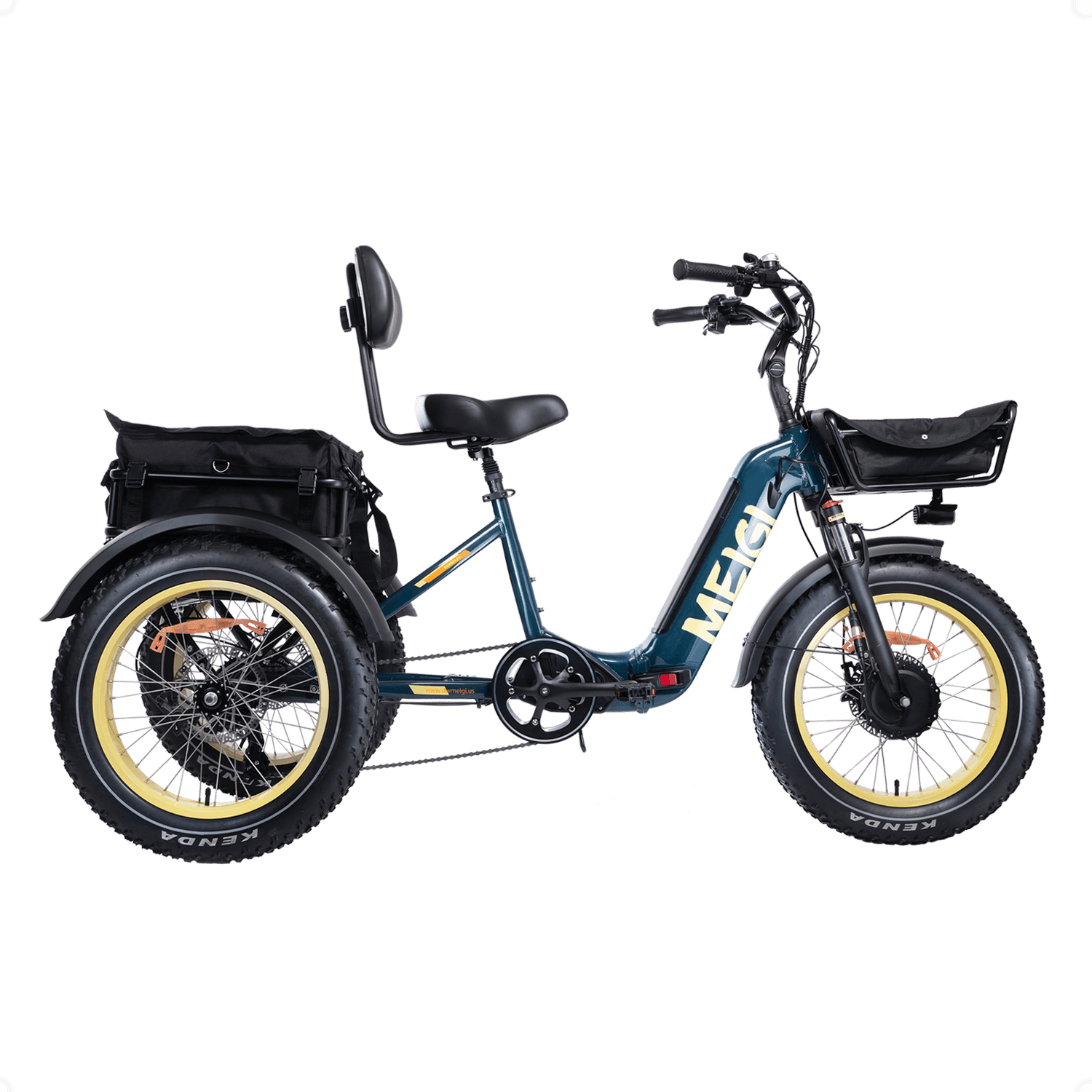

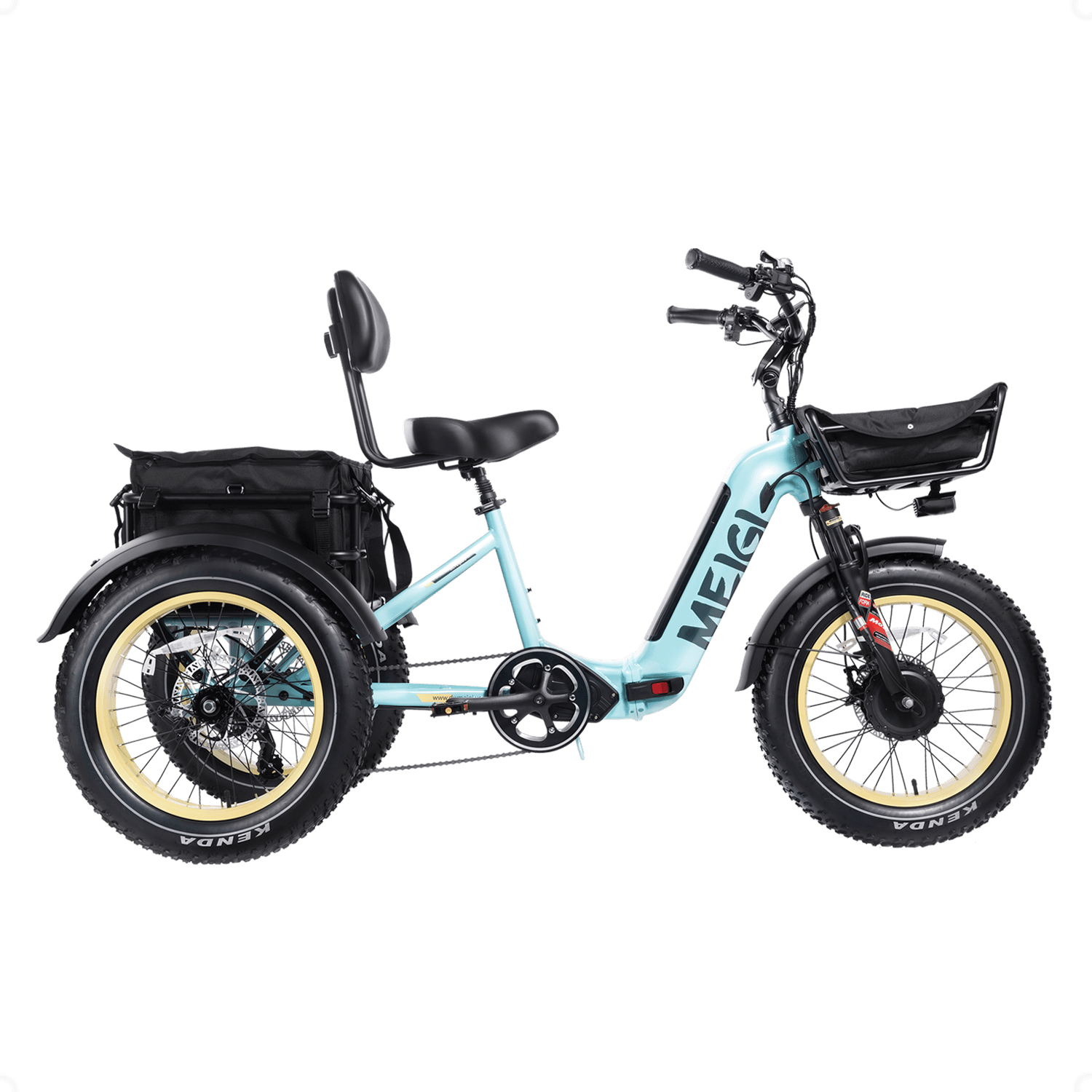

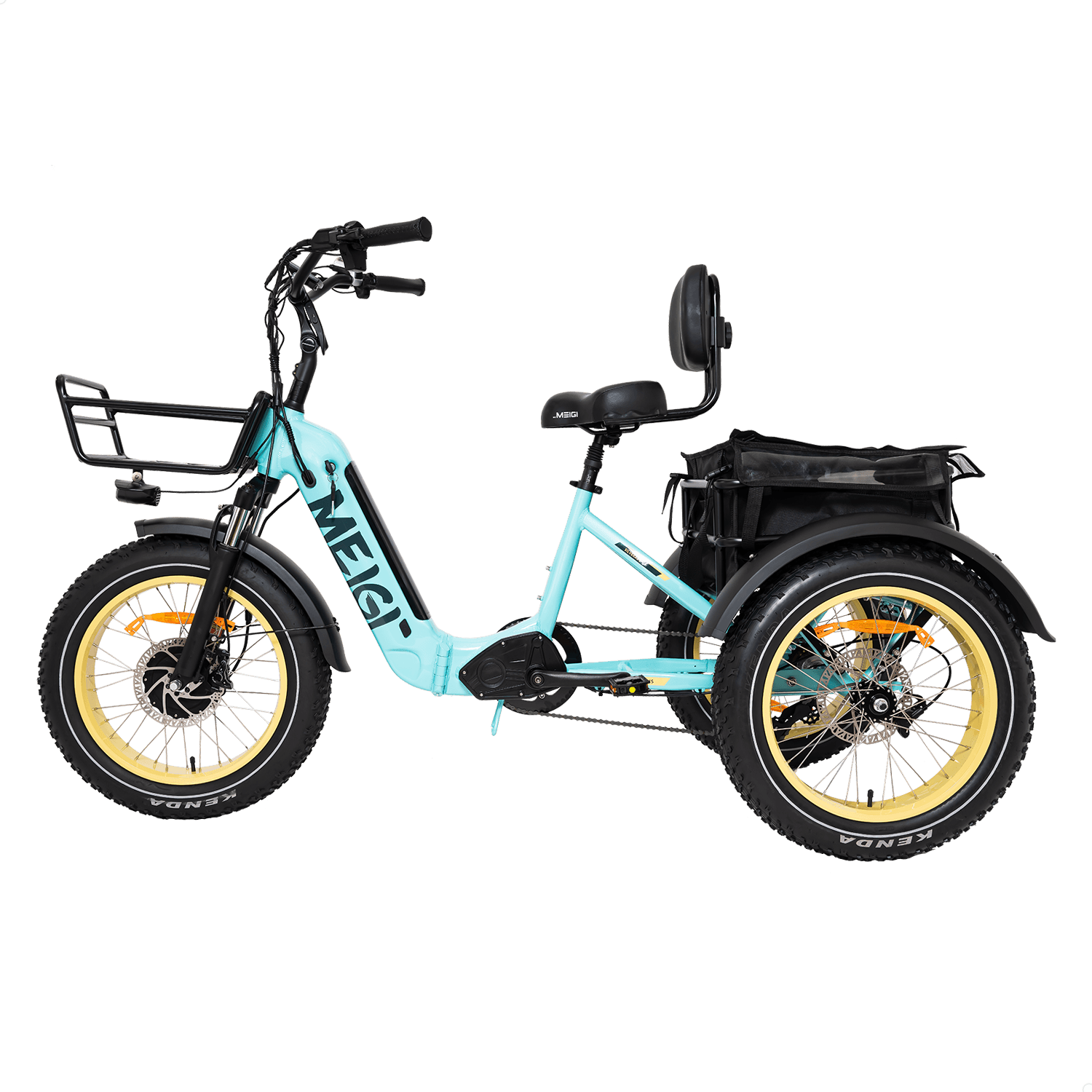

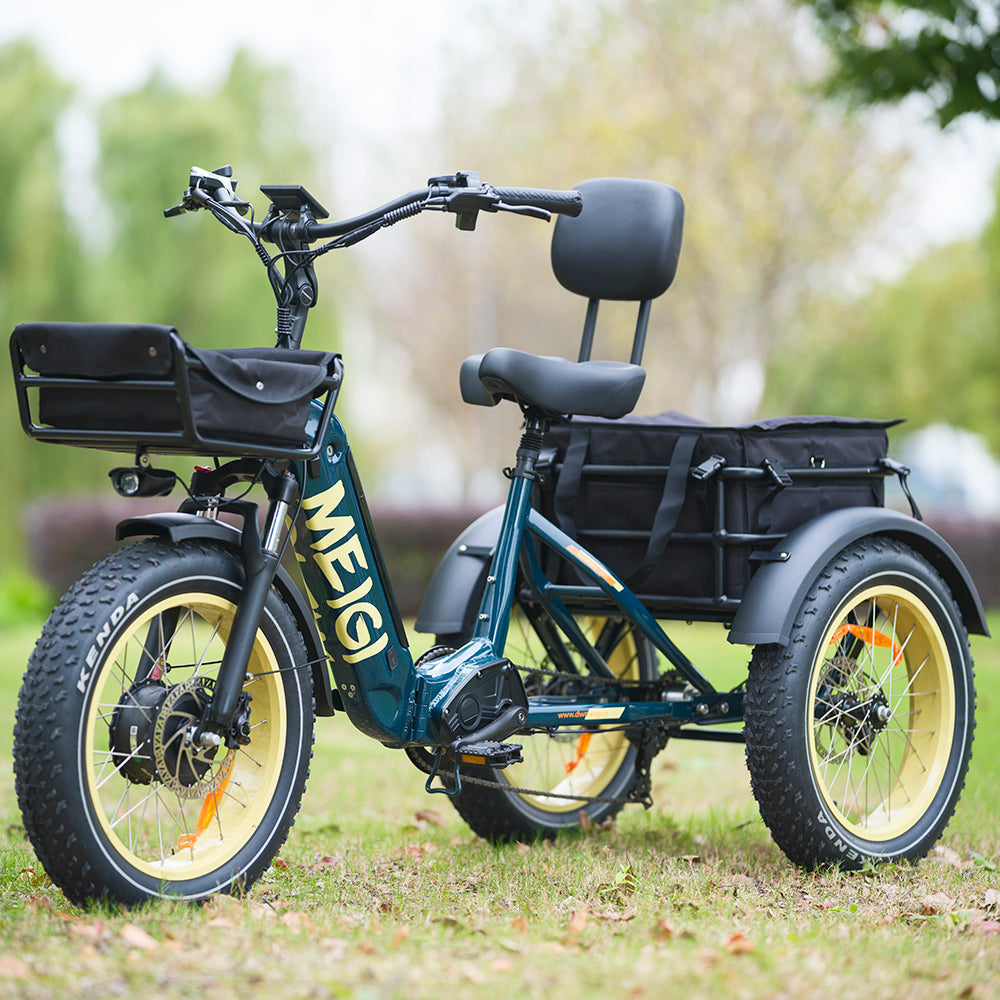

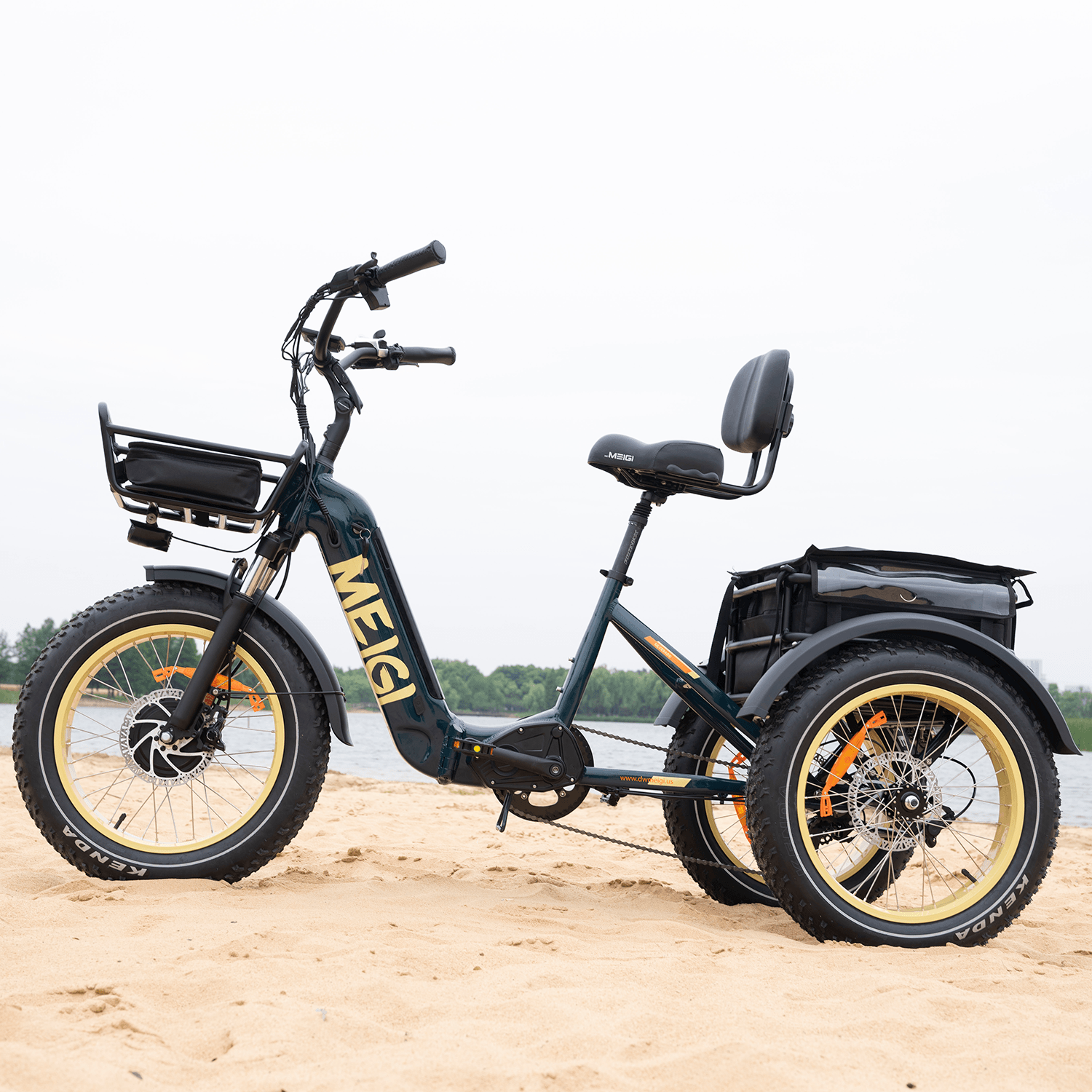

Meet the MG2301-SILVERADO-HD Fat Tire Electric Tricycle — 750W front brushless hub motor (described as BAFANG), max torque 80NM (official page states 750W only - does NOT say whether rated or peak; no second figure published) of power, up to Icon spec row: 35-55 Miles. Body copy: up to 35 miles pure electric / 55 miles pedal assist of range, speeds up to 20 MPH.
Why You'll Love It
- 750W brushless hub motor, 80 N.m torque
- 48V 14Ah removable Samsung-cell battery
- 35 mi electric / 55 mi PAS range
- 20 MPH top speed
- 400 lbs max load
- FOLDING step-through 6061 aluminium frame (14" stepover)
- 20x4" fat tires
- MOZO lockable hydraulic forks + seatpost suspension
Specifications

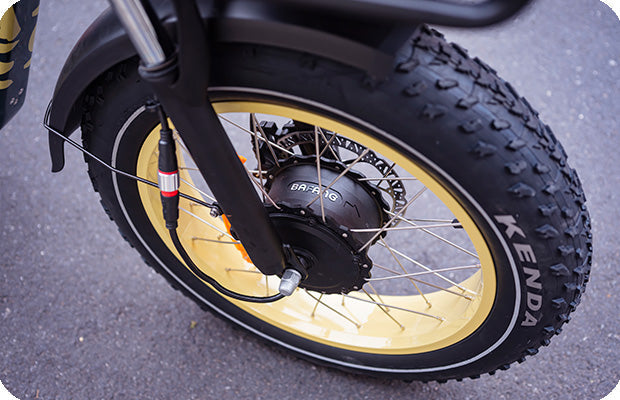

| Motor | 750W front brushless hub motor (described as BAFANG), max torque 80NM (official page states 750W only - does NOT say whether rated or peak; no second figure published) |

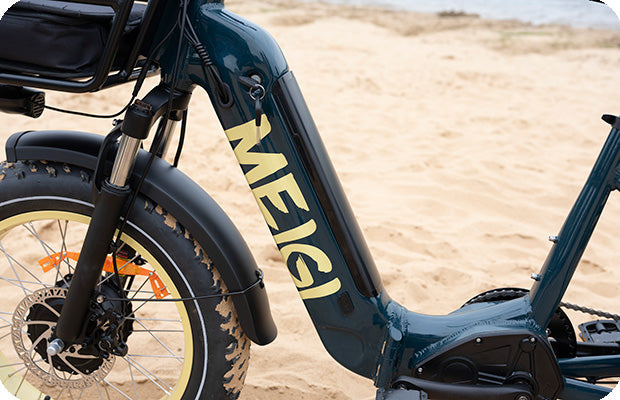

| Battery | 48V 14Ah removable Samsung-cell lithium-ion |
| Range | Icon spec row: 35-55 Miles. Body copy: up to 35 miles pure electric / 55 miles pedal assist |

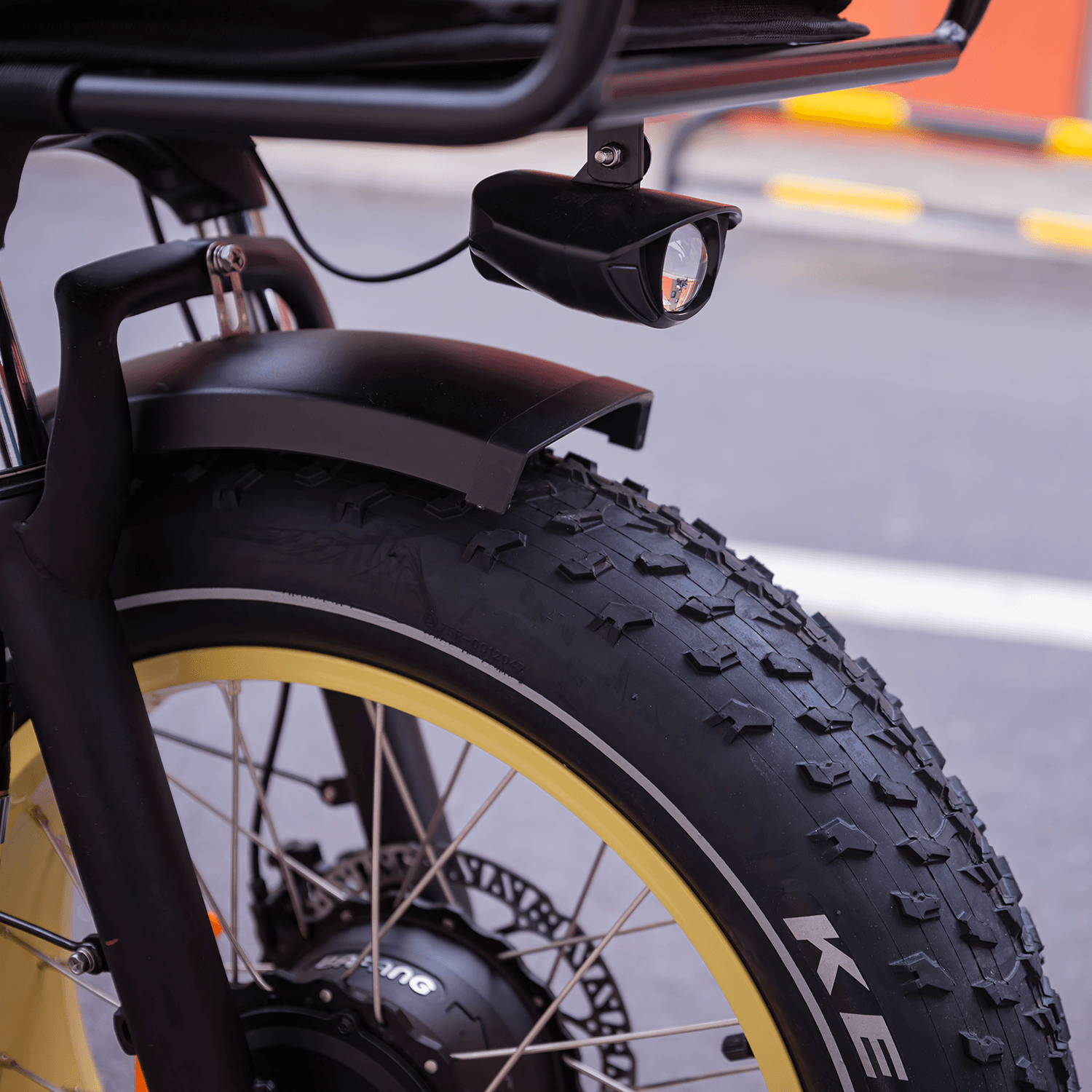

| Tire | 20 x 4-inch fat tires |
| Payload | 400 lbs max load |
| Speed | 20 MPH |
| Suspension | MOZO lockable hydraulic front forks + seatpost suspension |

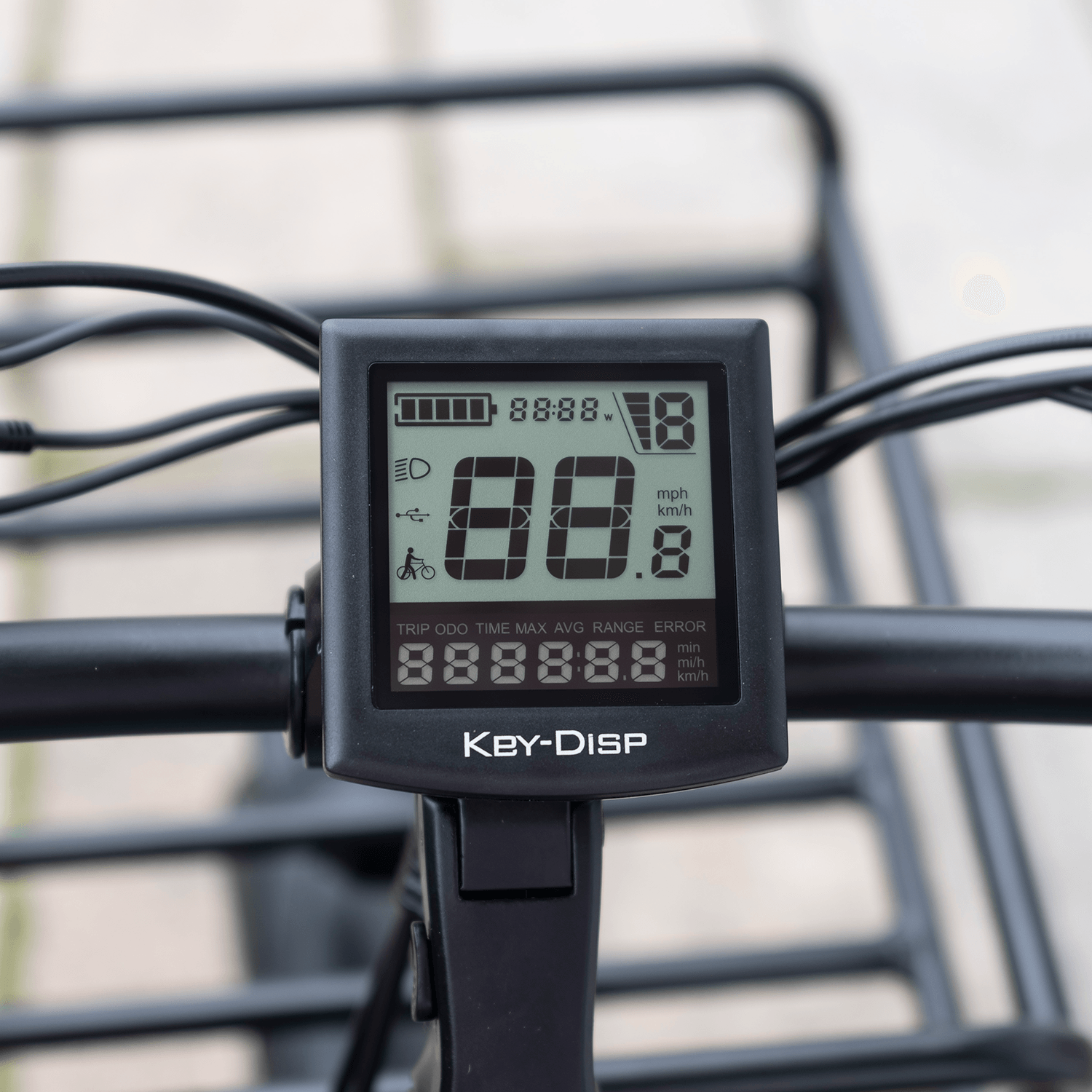

| Display | 3 Inch LCD Display With USB Port |
| Warranty | '1 Year Warranty' / '1 year warranty policy' (site-wide badge). Optional extended warranty sold on this product page: 1 Year +$239, 2 Year +$439, 3 Year +$639 |
| Charging Time | 4-5 Hours |
| Drivetrain | SHIMANO 7-speed shifter |
| Throttle | Variable Speed Control With Thumb Throttle |
| Controller | 48V 22A controller |
| Handlebar | Promax aluminium alloy |
| Frame | 6061 aluminium alloy, foldable step-through frame; stepover to floor height 14" |
| Storage | 58L storage; front basket 12*11*5" (5 kg limit), rear basket 19*15*10" |
| Dimensions | Total length 74", wheelbase 49", seat height 32-38", stand height 14", handlebar height 42-45", reach 24", handlebar length 30", rear-wheel length 31" |
| Accessories | Fenders and rear rack included |
ATB Bike is an authorized MEIGI dealer. Ships from the USA with the manufacturer's '1 Year Warranty' / '1 year warranty policy' and US-based support. Questions before you buy? Talk to our team.
