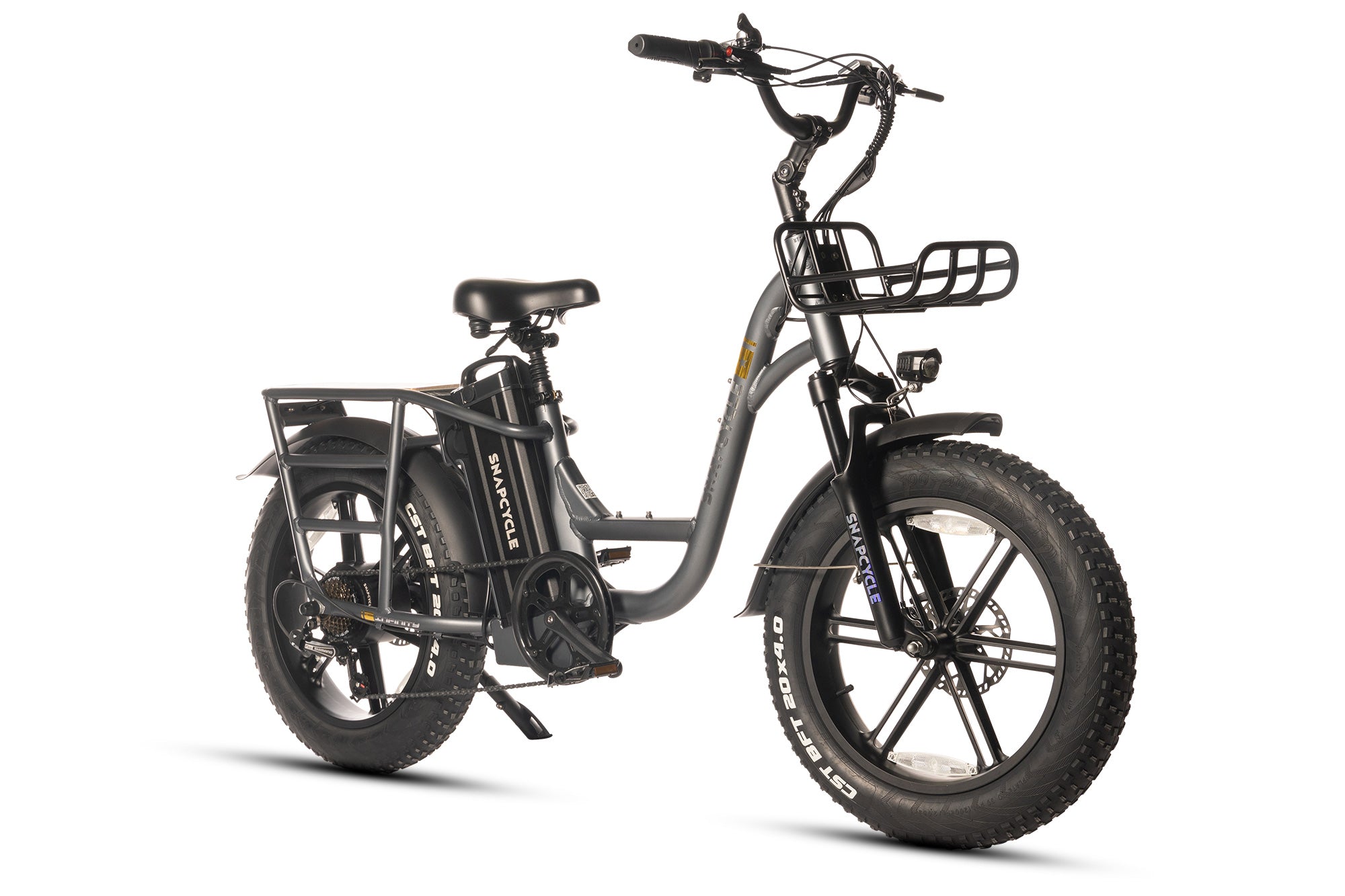

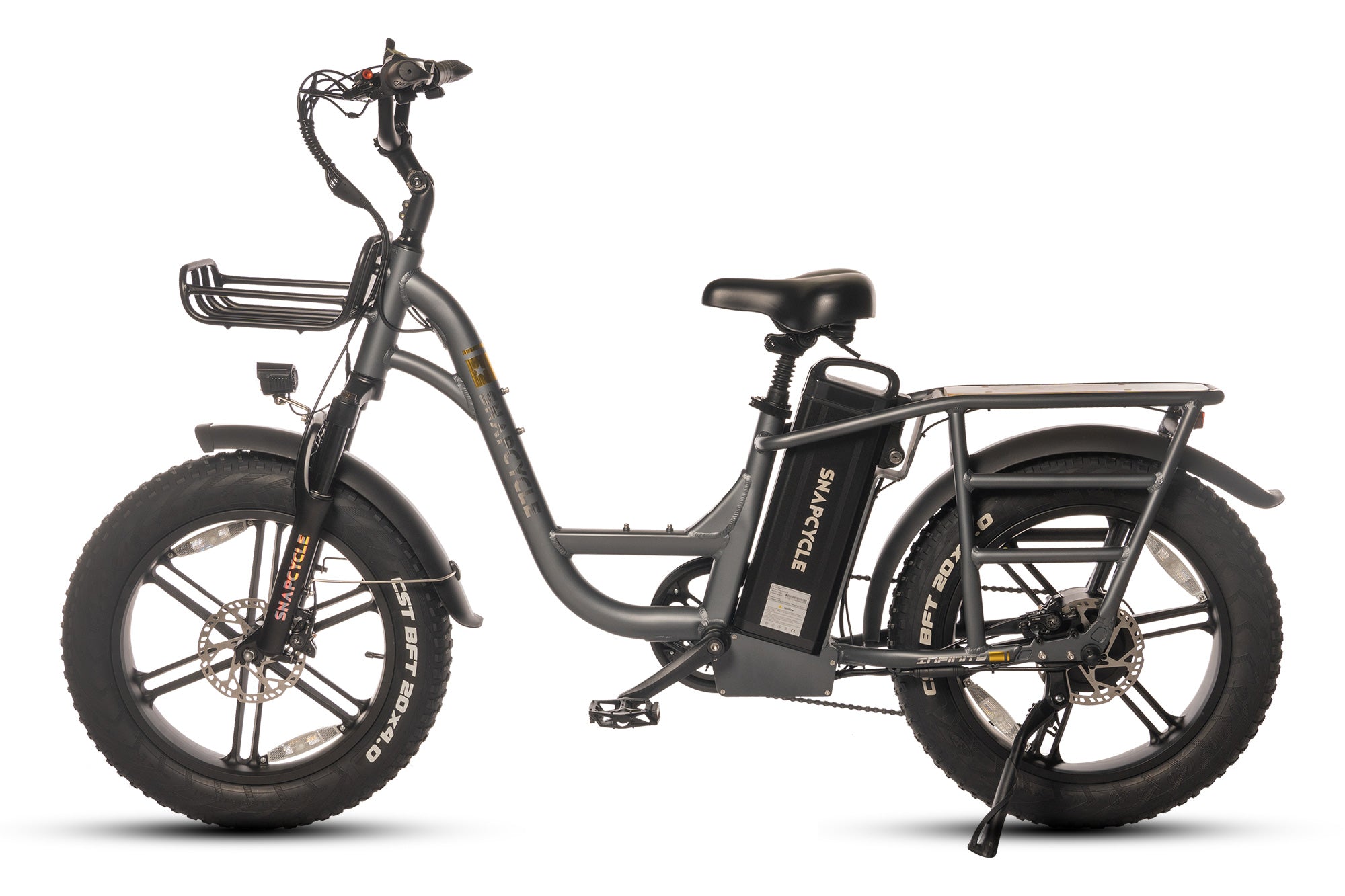

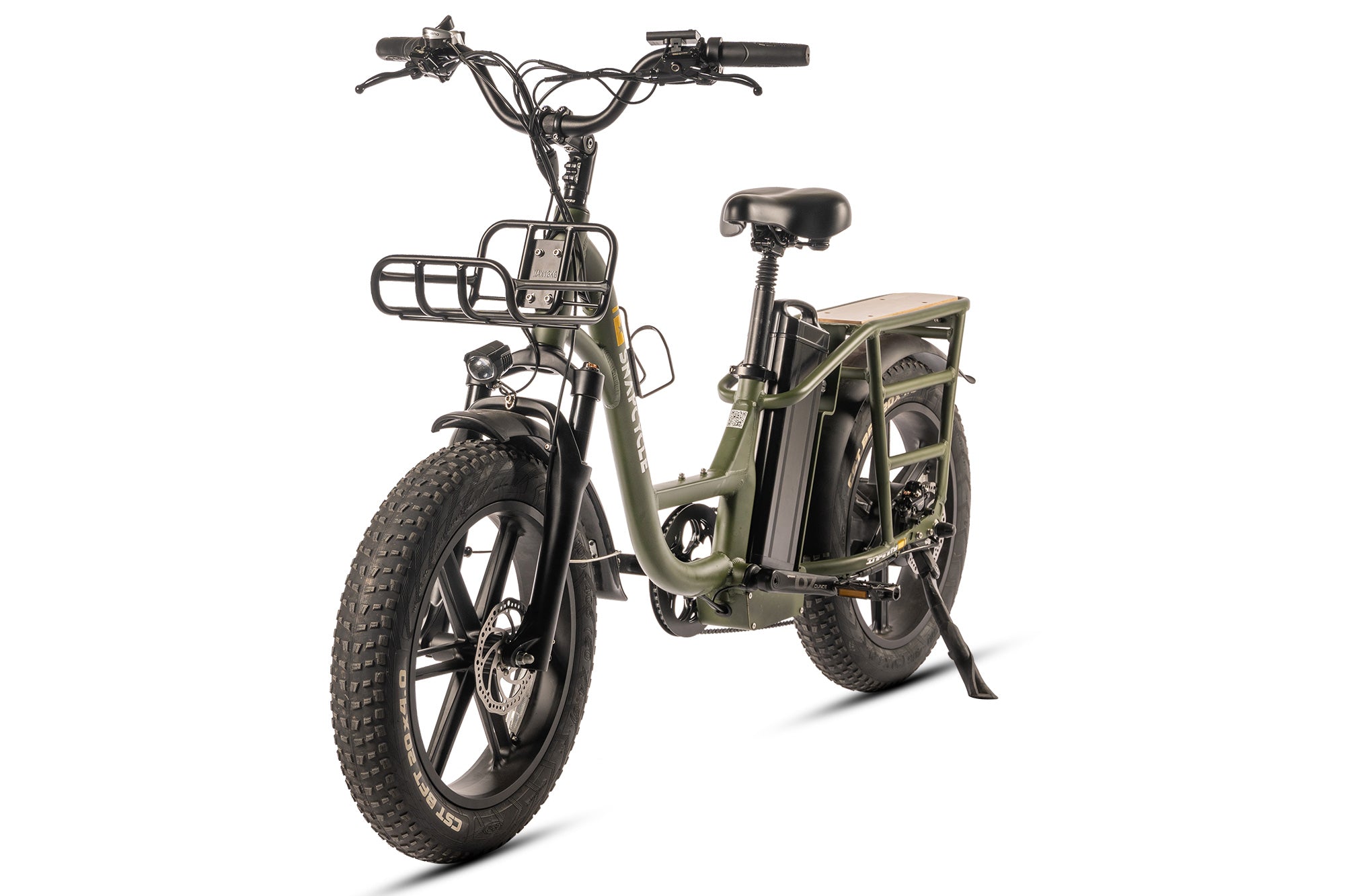

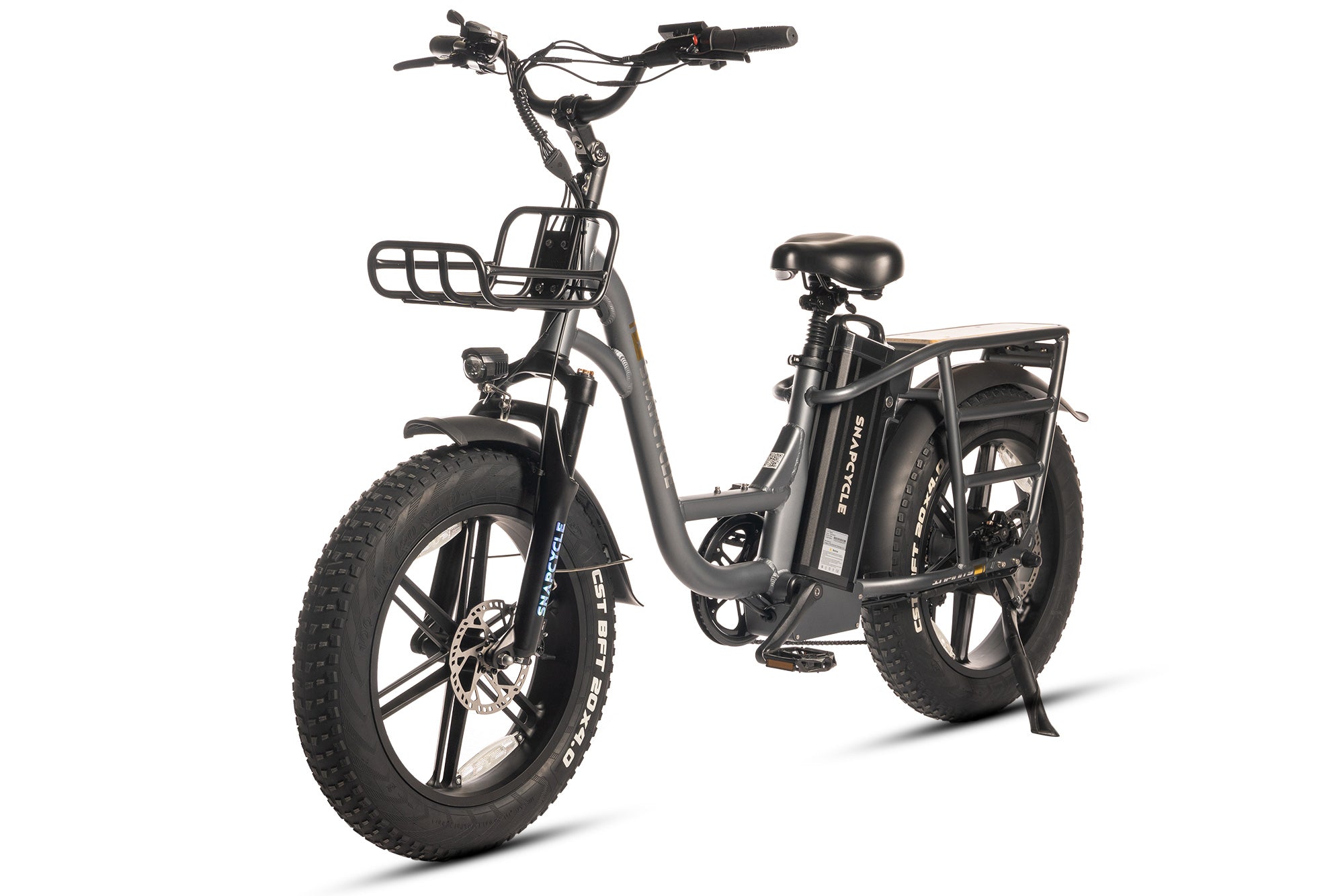

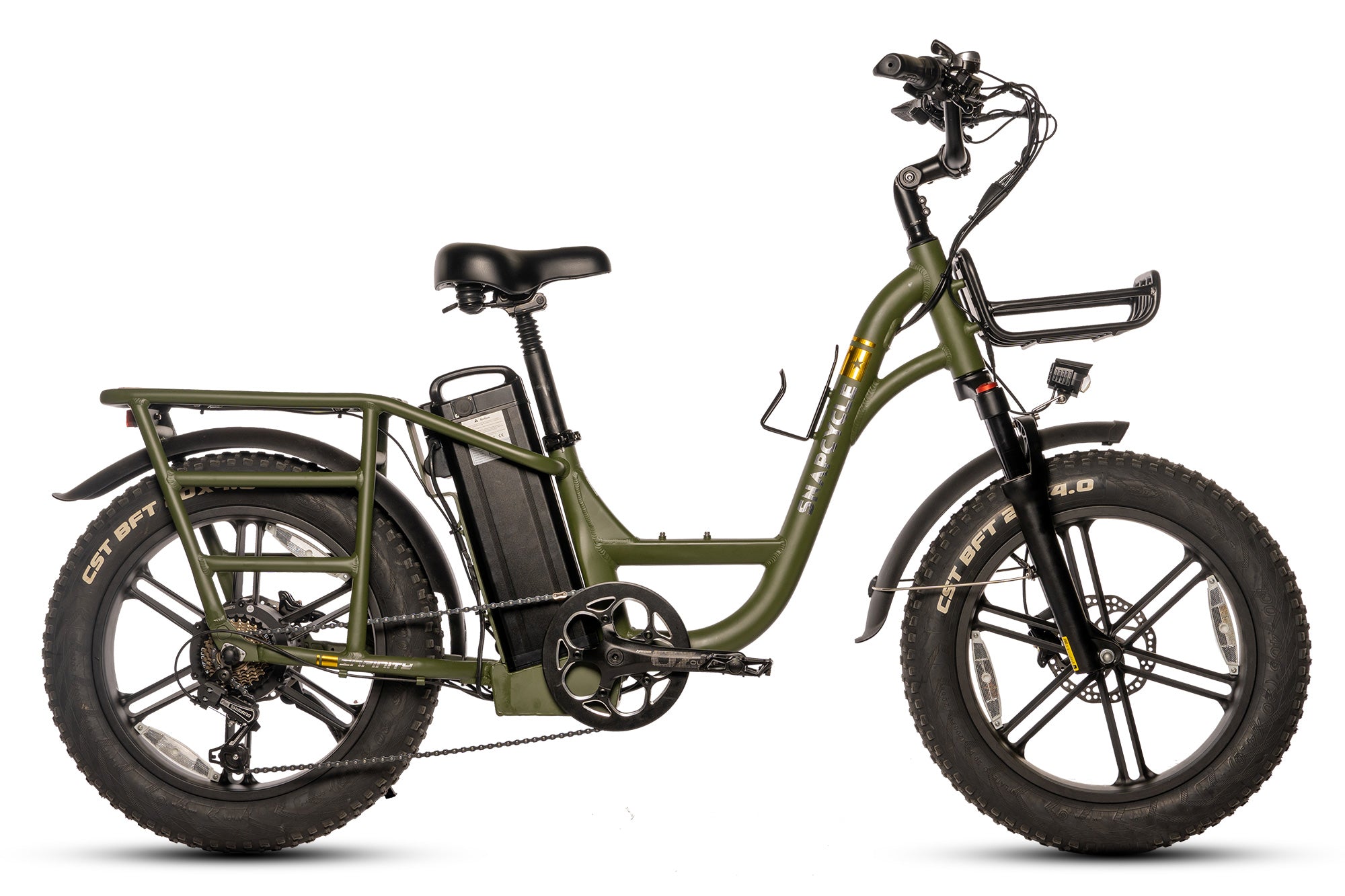

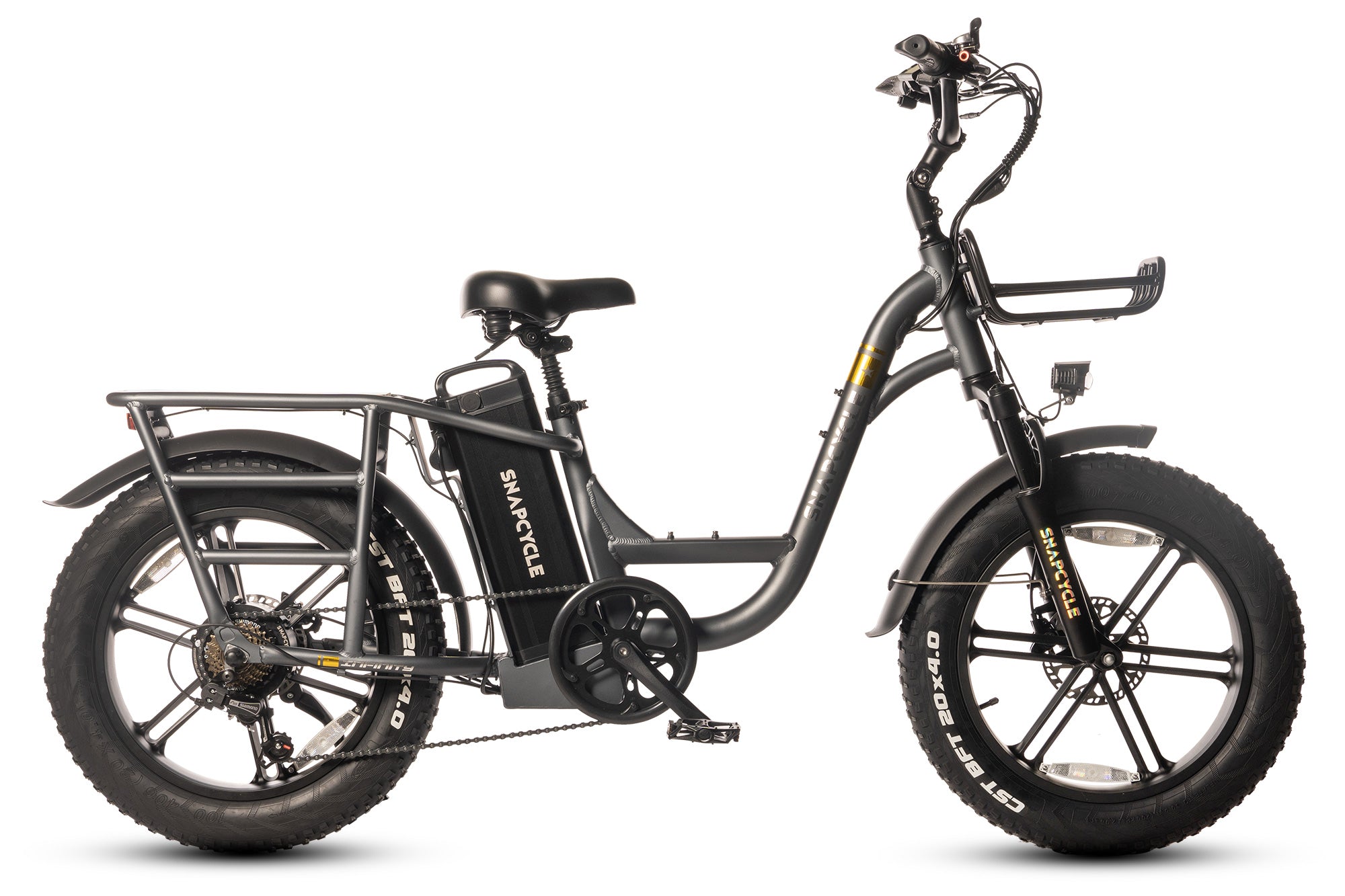

Snapcycle Infinity
features like Half Twist Throttle, Smart 48V 3 Amp Charger,Backlit LCD Display.

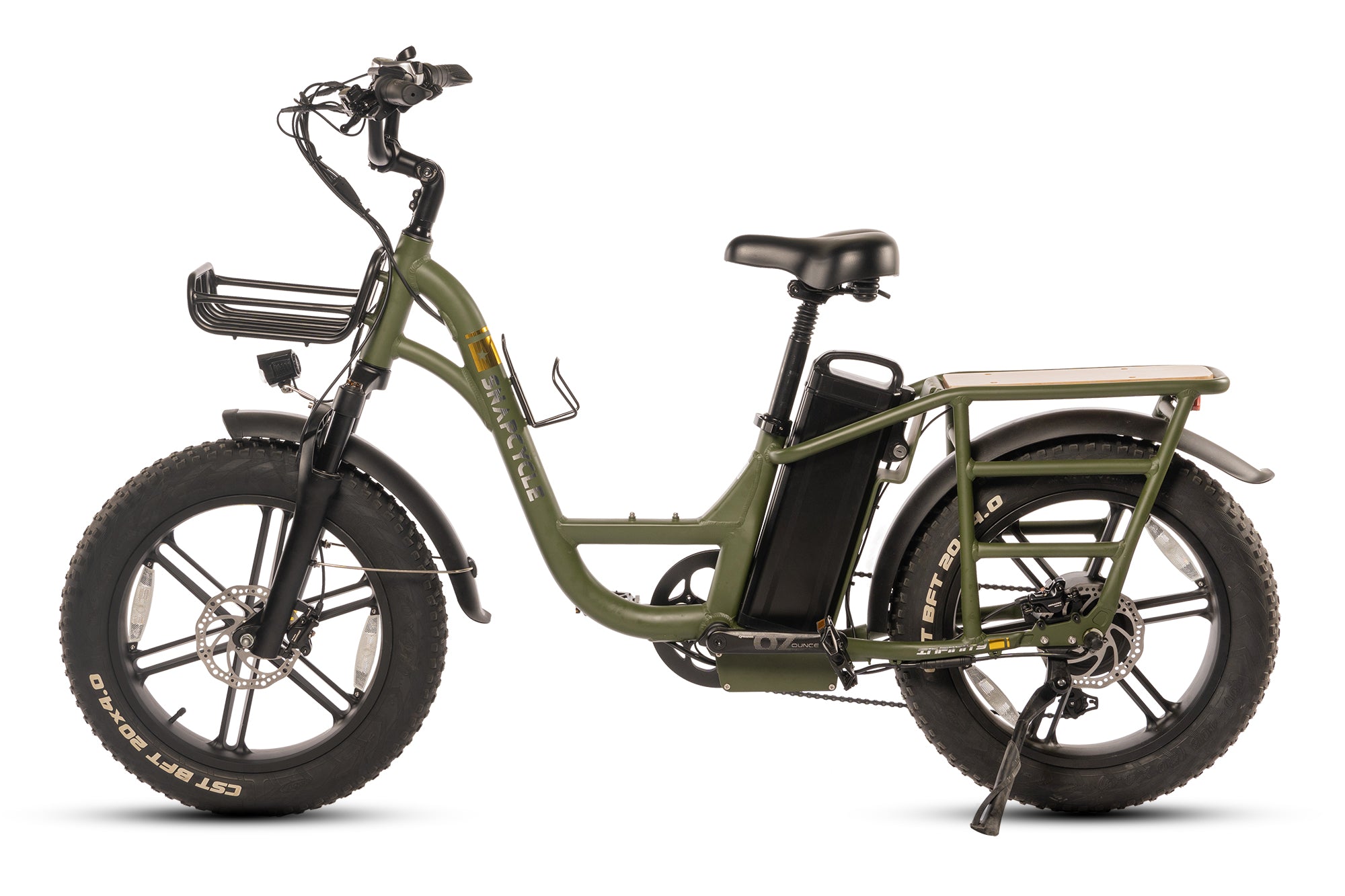

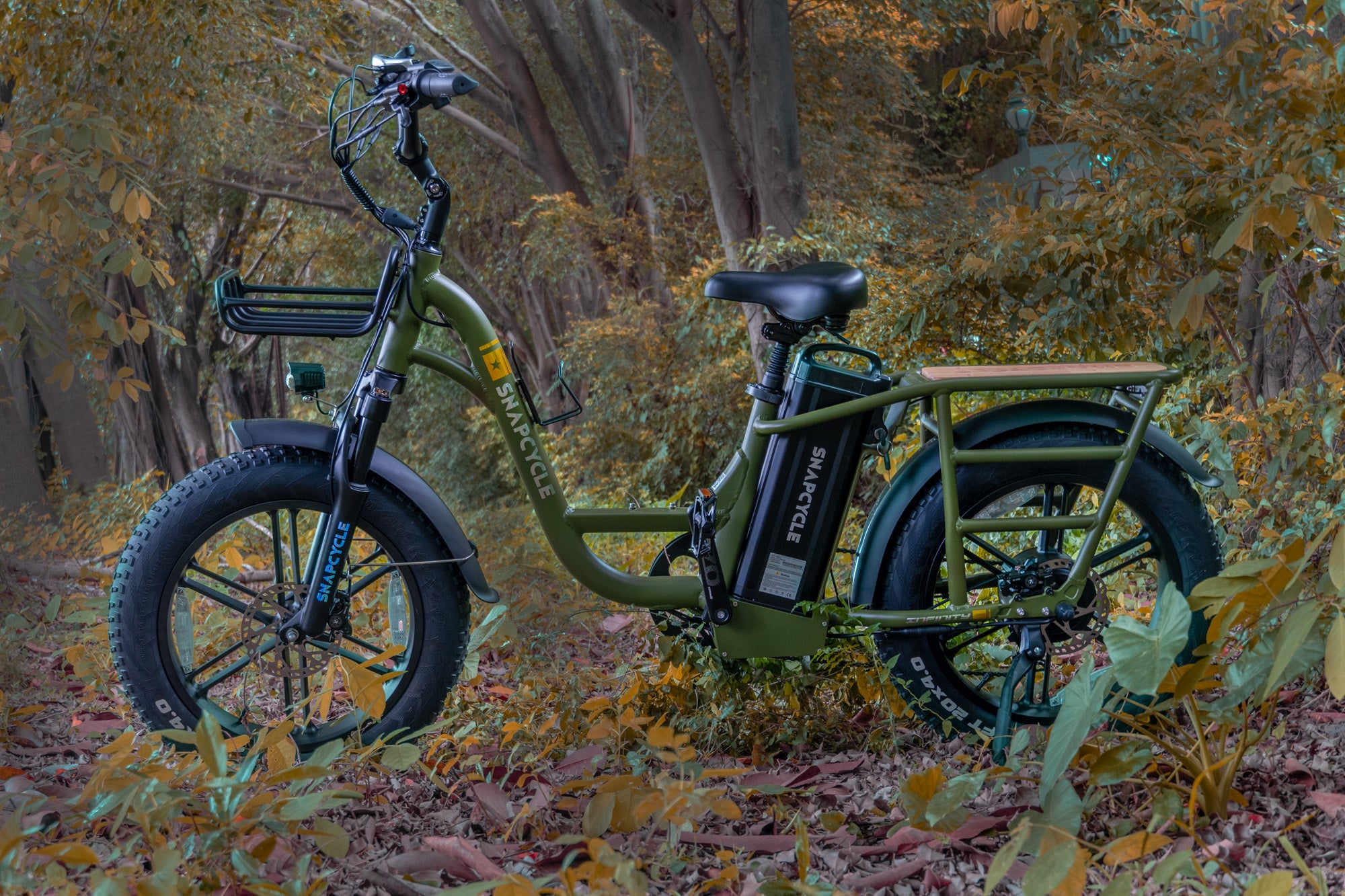

Cargo Electric Fat Tire Bike
Multi-funtional cargo ebike with 400 LBS Payload Capacity
Ships in 2-3 days from California.

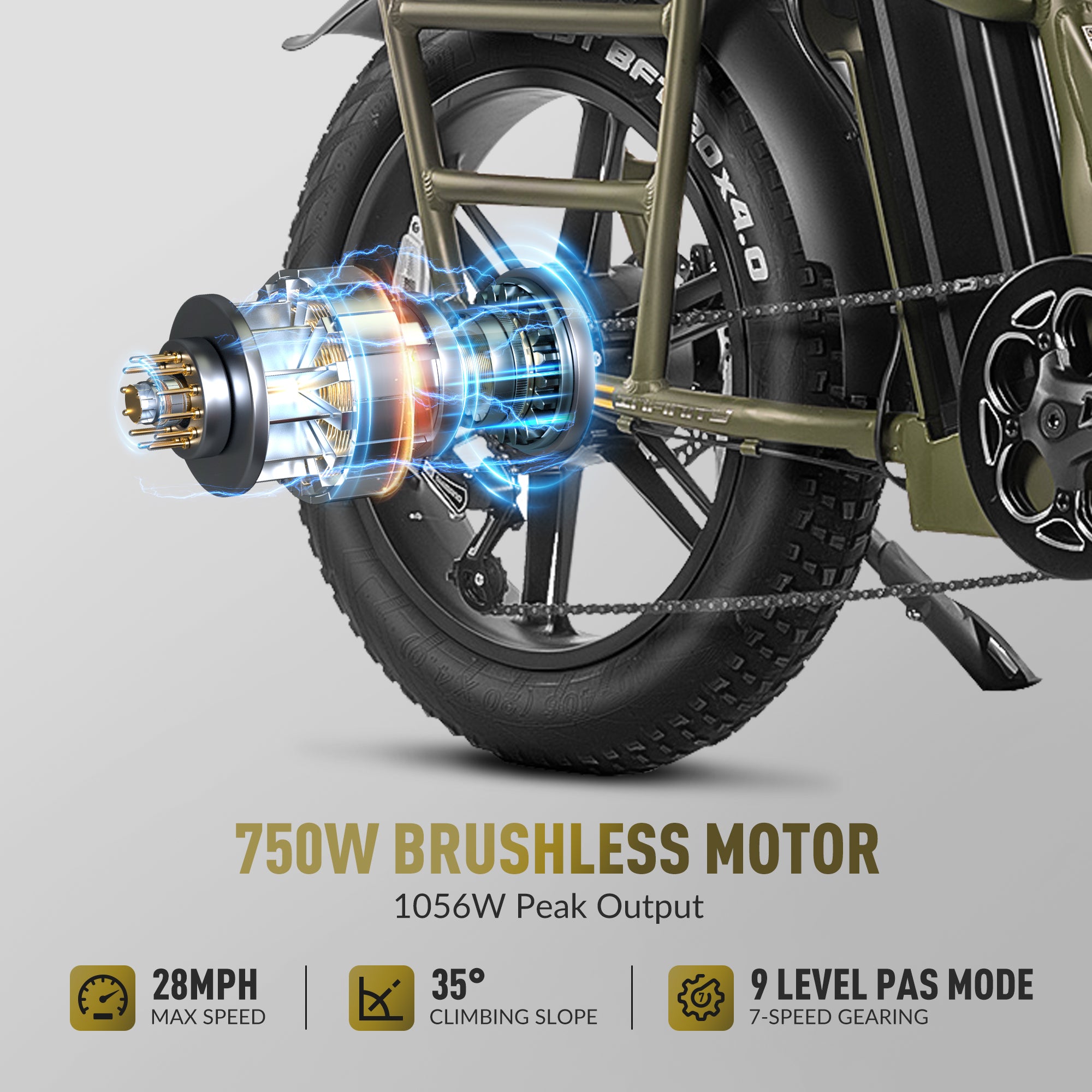

750W Brushless Geared Hub Motor
With 750W sustained, 1056W peak power and 85Nm of torque at your disposal, the high-speed brushless geared hub motor can help you conquer the most rugged terrains easily.

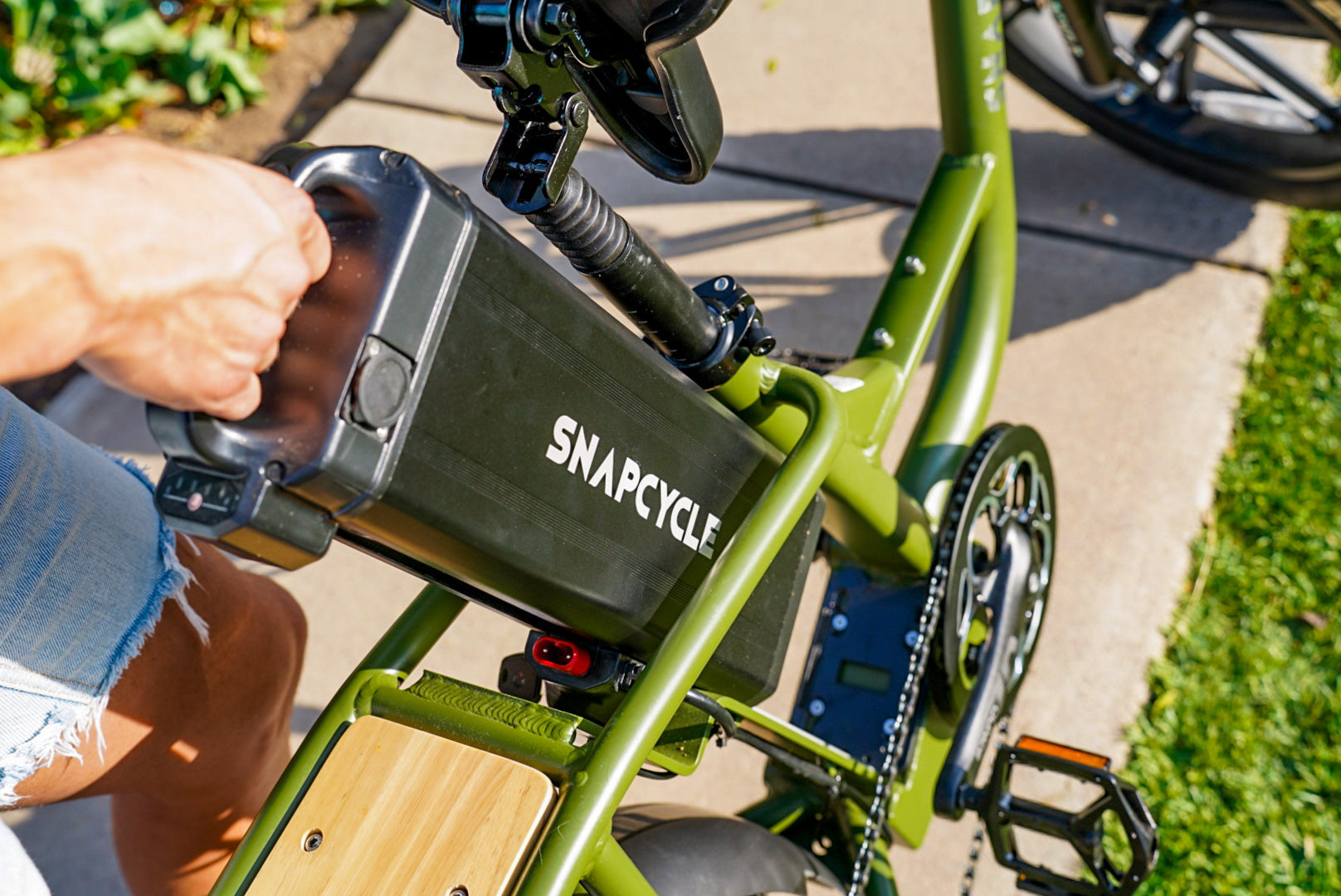

48V 15Ah Samsung Lithium Battery
Our batteries are rated 48V-15Ah and are made of EVE 25P 18650 cells, which are renowned for their long lifespans and excellent performance. The battery management system (BMS) complies with EN ISO 13849-1:2015 standards and comes with temperature protection features to enhance its durability and safety. With each charge, you'll get to enjoy up to 45 miles of range on pedal-assist mode, and up to 30 miles on pure electric power mode.

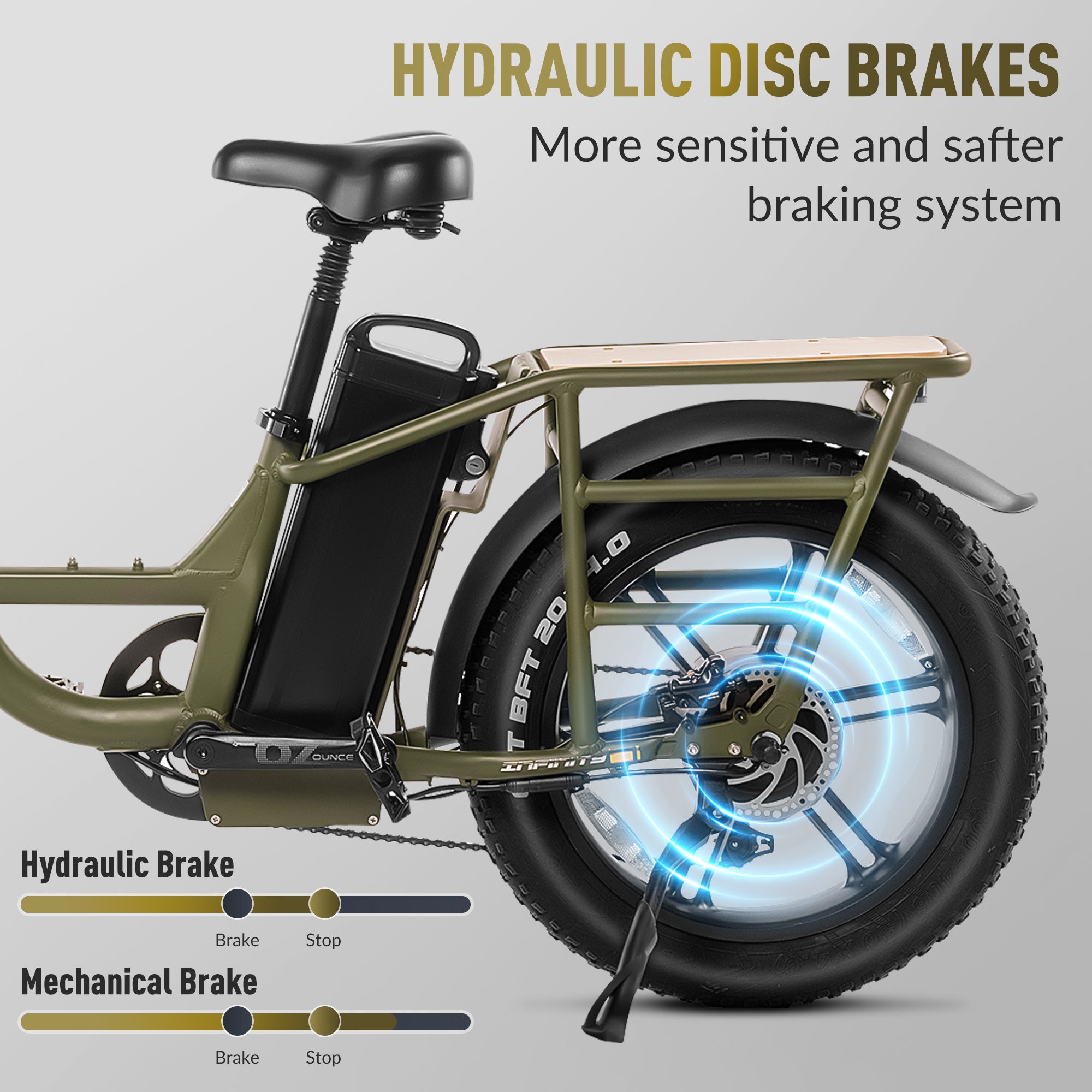

Hydraulic Disc Brakes
The sensitive brake system comes with low-noise resin pads, and 160mm front and rear disc rotors. It also has automatic caliper centering features and can provide smooth and effective braking even in the harshest conditions.
Front Suspension Fork
The spring suspension fork has 135mm of travel, with preload adjustment and lockout. It is able to dampen the roughness of the terrain, providing a smoother, more enjoyable ride.
Quick & Smart 48V 3 Amp Charger
It only takes less than 5 hours to fully charge the battery, which greatly shortens the time between rides to keep up with the rapid pace of your commuting demands. This fast charger is certified to UL standards and its safety and reliability are guaranteed.
Heavy Duty Bike Frame
Multi-funtional cargo ebike with 400 LBS Payload Capacity
Geometry
It comes with a front basket and rear rack, which are convenient for carrying packages. Recommend for 5'3"~6'4" riders
TECHNICAL HIGHLIGHT

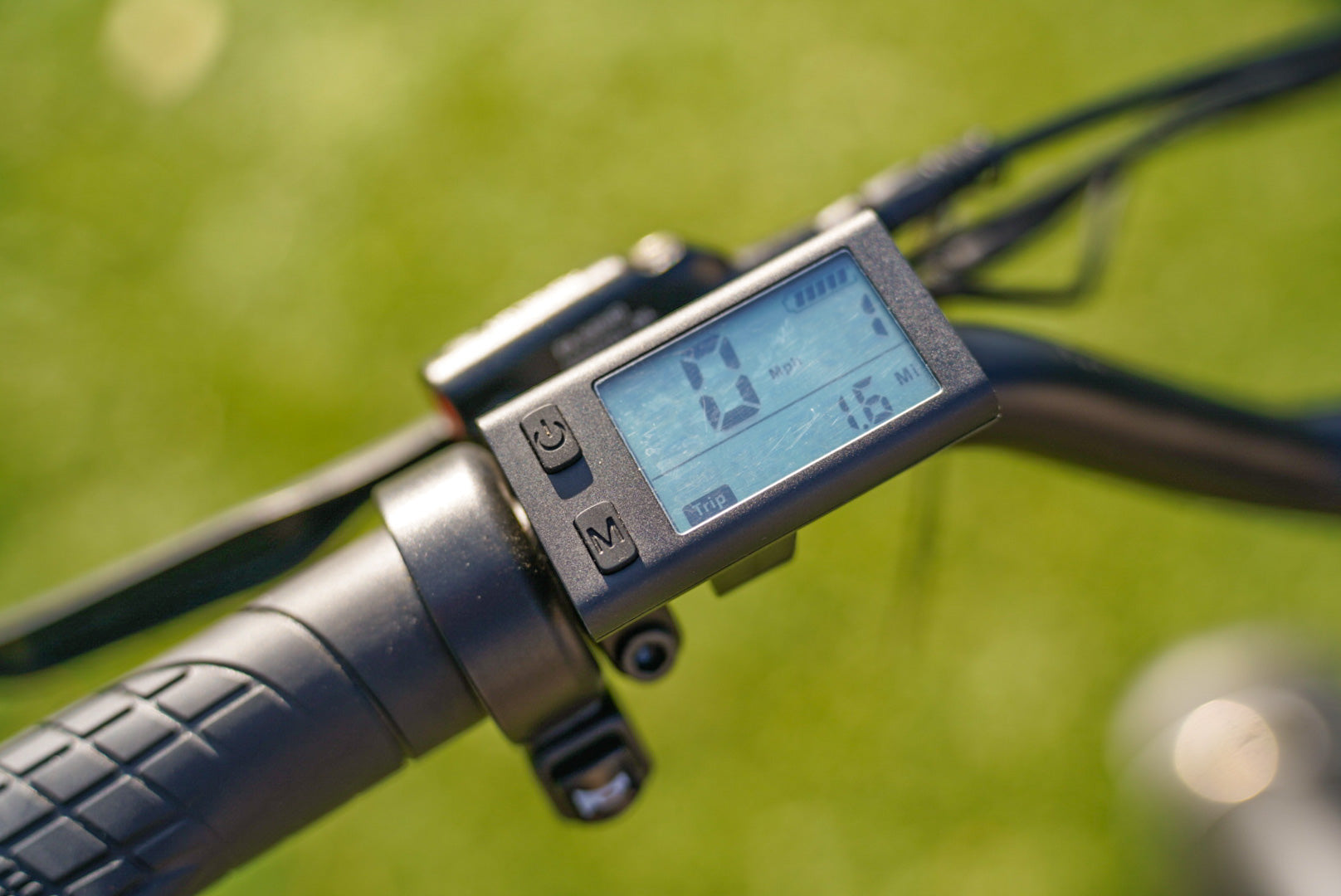

Backlit LCD Display
The intuitive display provides real-time information about your ride, including mileage, battery level and speed. It also provides diagnostic information to its users.

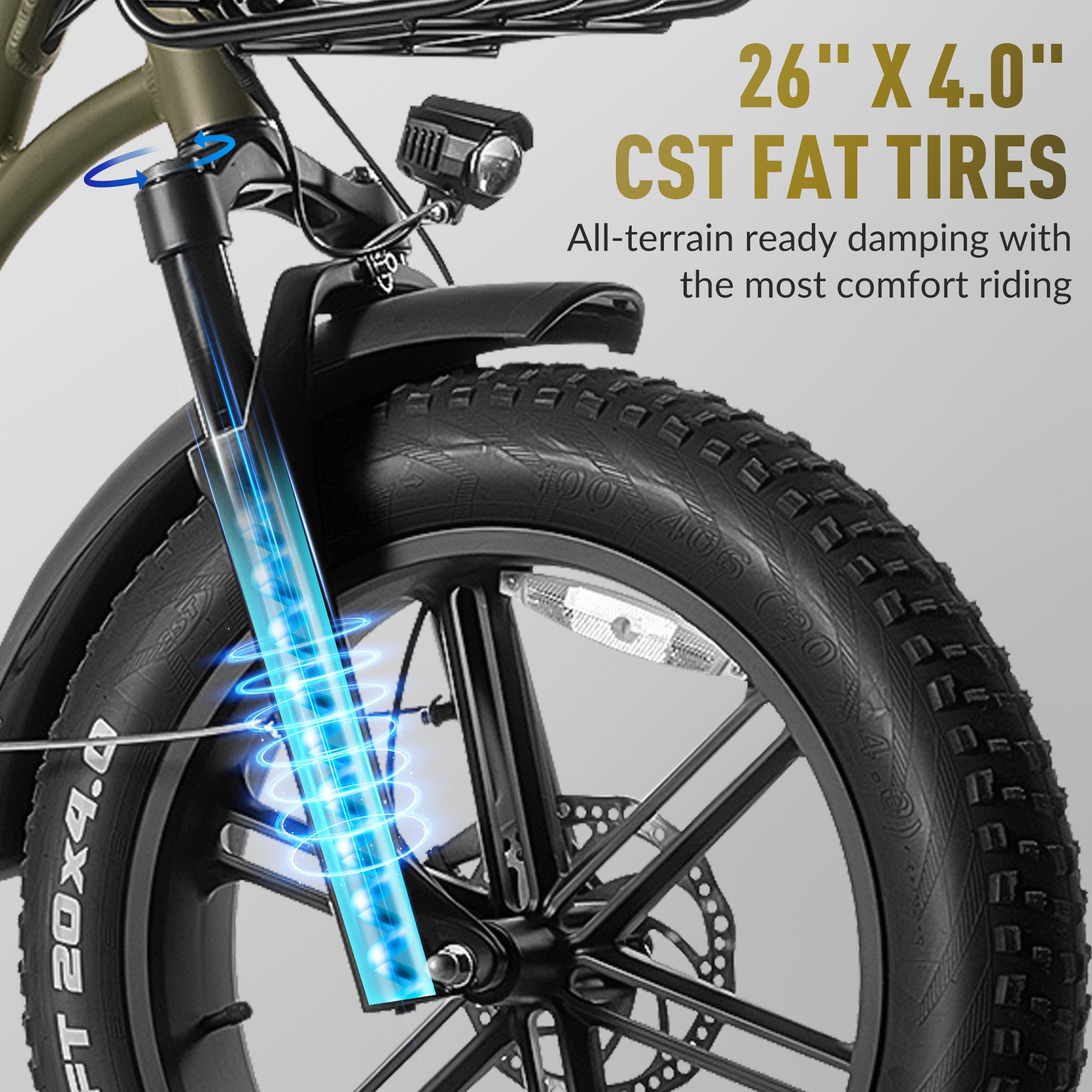

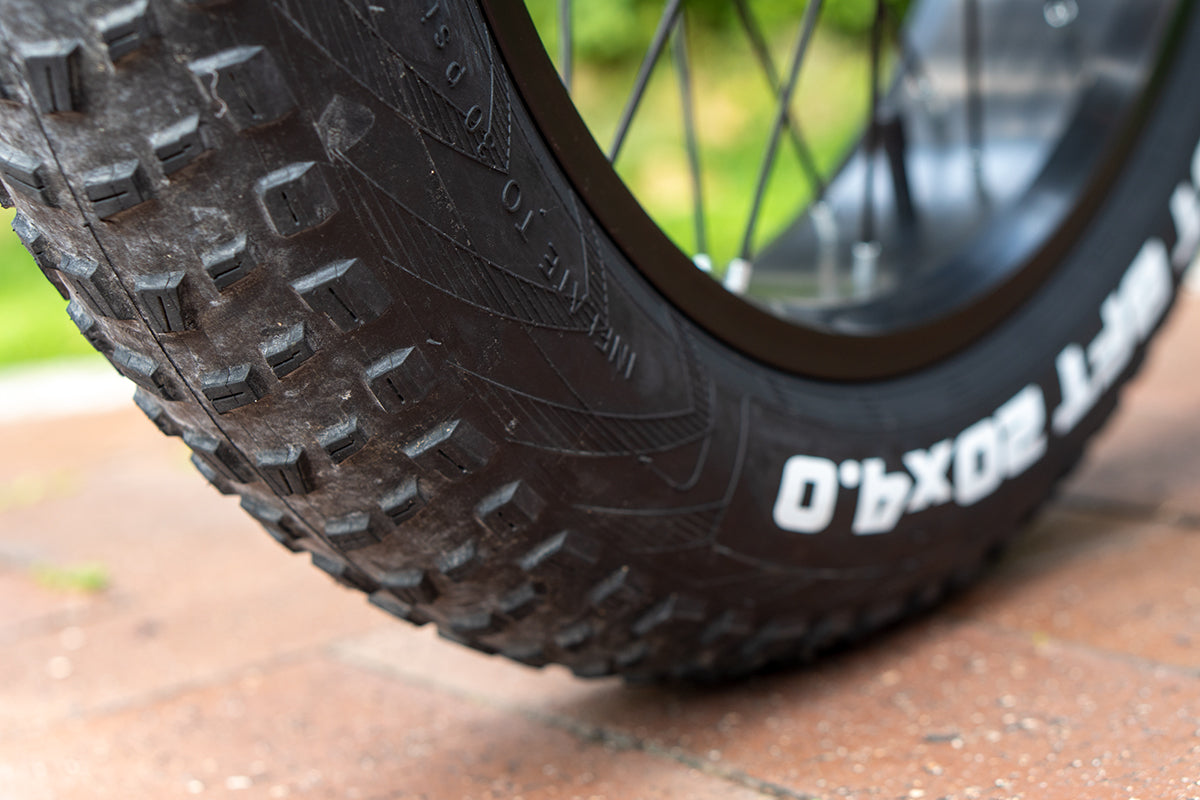

4” Fat Tire
4” Fat Tires provide excellent grip and traction on all terrains. Whether it’s mud, sand, gravel, grass, or snow, our fat tires will ensure a smooth and safe riding experience.

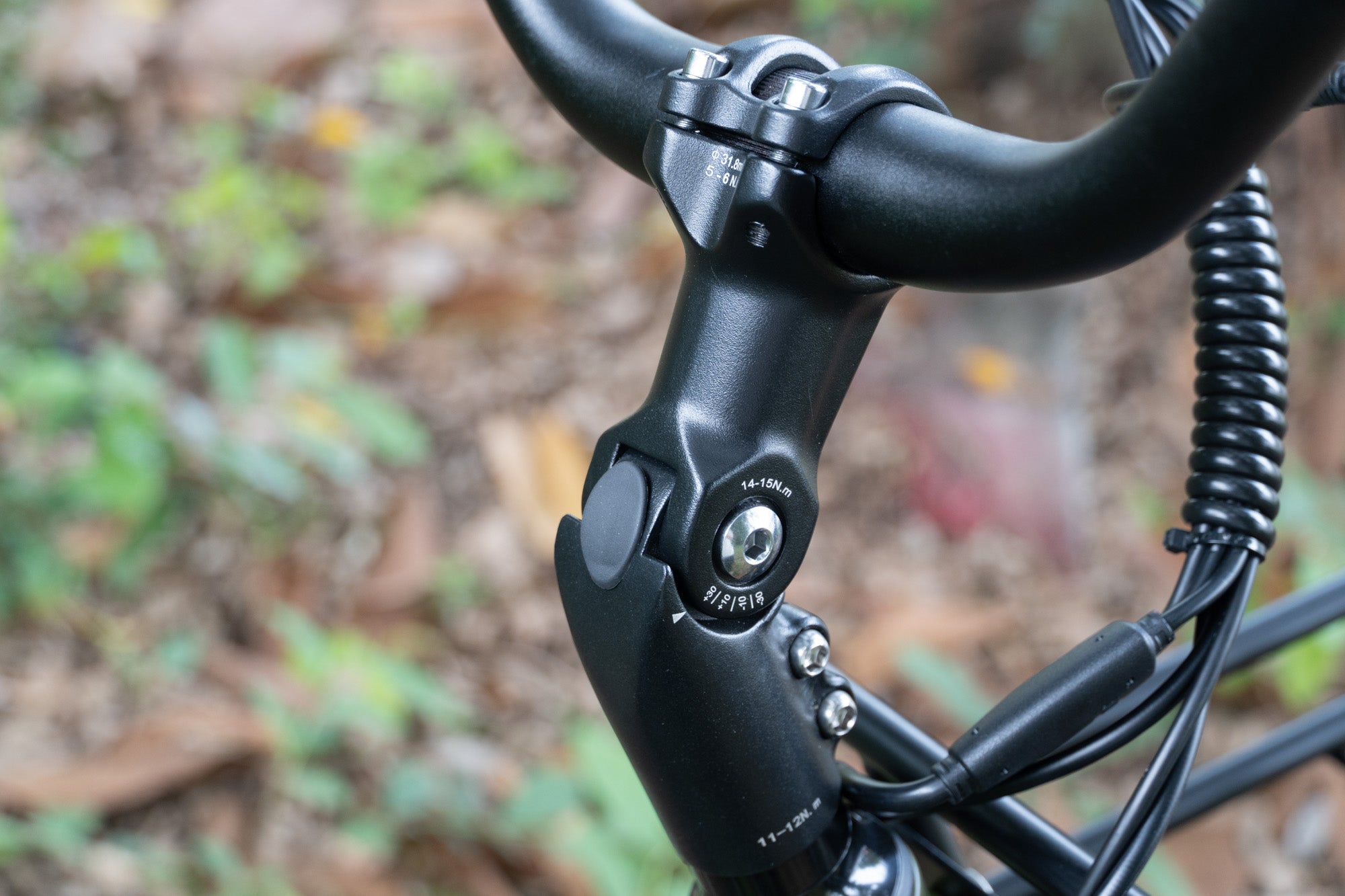

Adjustable Handle Bar
The handlebar angle adjustable adaptor allows you to adjust the angle of your handlebars to achieve a more comfortable and ergonomic riding position.

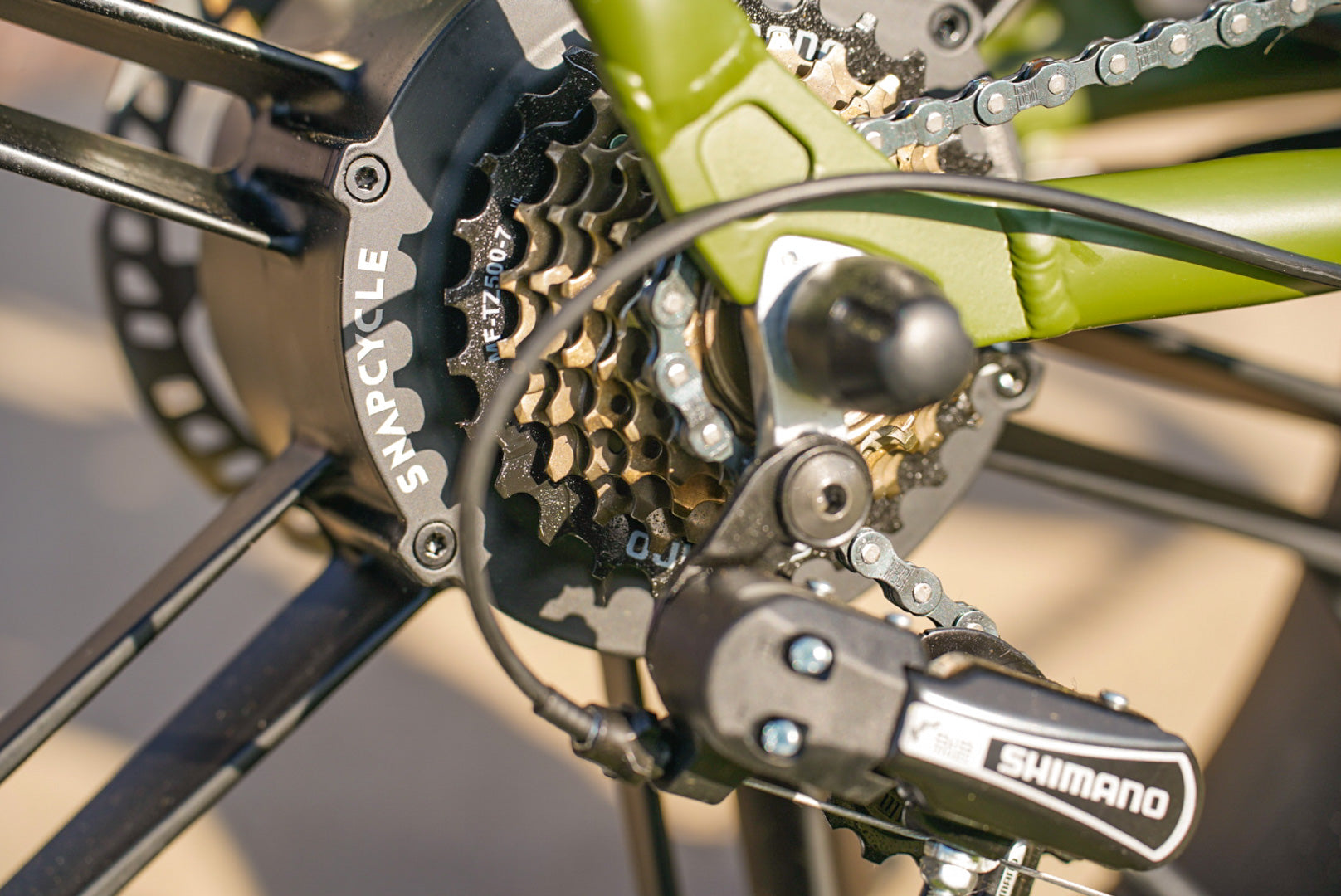

Shimano Derailleur
High quality Shimano gears and derailleurs enable you to maintain a comfortable pedalling speed, regardless of road conditions.

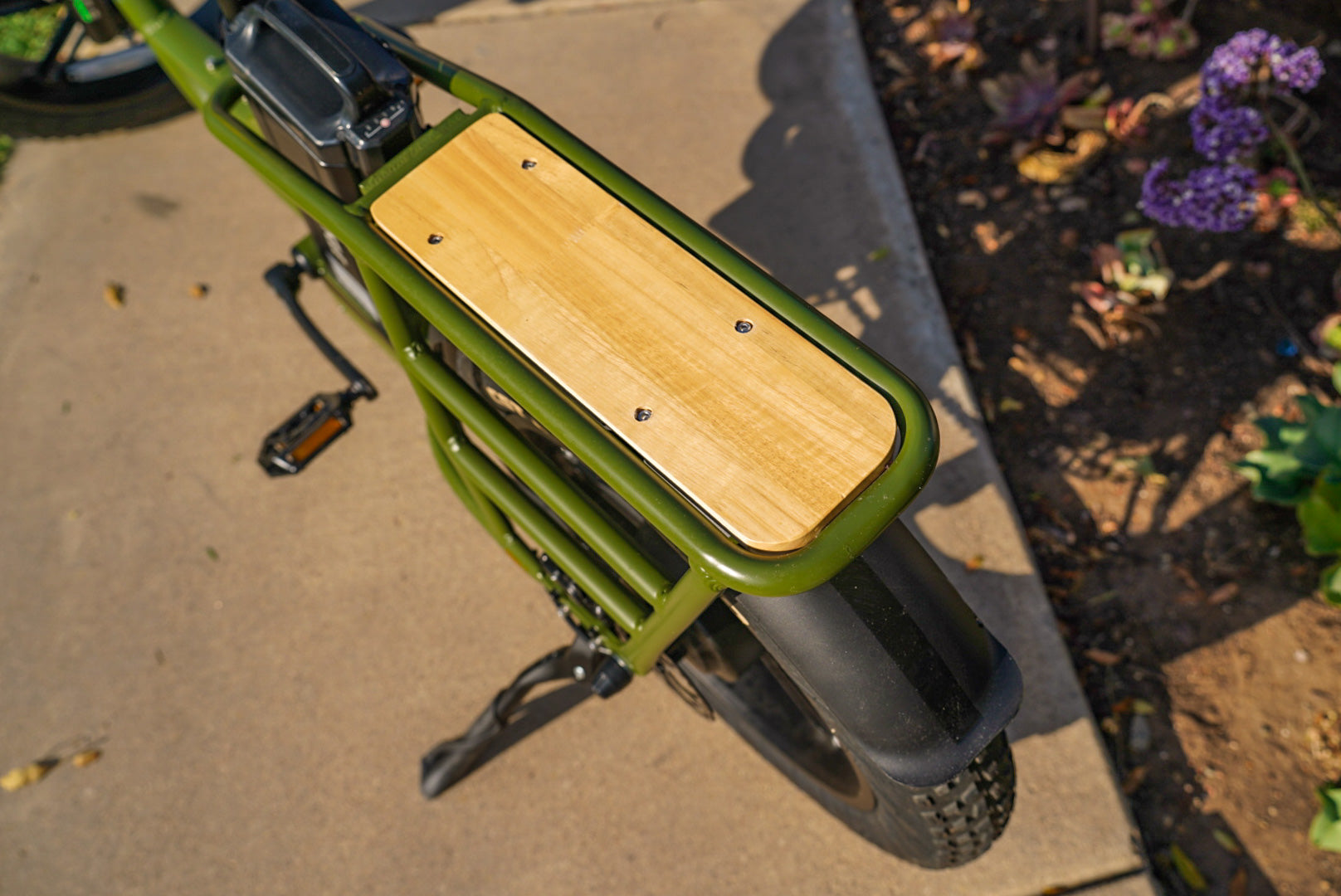

Solid Rear Rack
The sturdy rear rack with a vertical pillar is capable of carrying loads up to 400 lbs. You could bring a pet or a child along for a ride in the morning.
LED Headlight
It’s getting dark. Turn on your headlight to illuminate the road ahead. It also helps with your visibility at night.
Geometry
- A. Total Length 70.5"
- B. Handlebar Height 41.5“-45“
- C. Wheelbase 47.2‘
- D. Minimum Seat Height 28.3“
- E. Maximum Extension 7.9“
- F. Chain Stay Length 19.7“
- G. Standover Height 25.6“
- H. Top Tube Length 26.4“
- I. Wheel Diameter 22.8“
- J. Head Tube Length 5.9“
- K. Handlebar Length 24.8“
- Folded Dimensions 39.4"L/16.5"W/29.9"H
Specification
- Battery 48V 15Ah Samsung INR21700 lithium battery
- Range 30~45 Miles
- Electric Bike Class Class 2 (configurable to Class 3)
- Hub Motor 750W brushless geared motor, 1056W Peak
- Charging Time 4 ~ 5 Hours
- Total Payload Capacity 300lbs
- Recommended Rider Heights 5'1" ~ 6'4"
- Charger US standard 3.0 A smart charger, UL Certified
- Controller 48V / 22A 12-Tube
- Display Adjustable-Angle, Backlit, Grayscale 2.2'' LCD, IP67
- Frame Aluminium 6061
- Pedal Assist Intelligent 0~5 level pedal assist
- Weight 68lbs
Components
- Brake CalipersRONGLUN FA-500HD
- Brake LeversAluminium alloy comfort grip levers with motor cutoff switch
- Crank Set53T, 170mm Aluminium Alloy
- FenderFull coverage front and rear
- FreewheelShimano 14-28T 7-Speed Freewheel
- Pedals Foldable, 9/16"
- Seatpost ClampQuick-Release type
- Front SuspensionSpring Suspension, 95mm Travel, Lockout and Preload Adjustment
- Rear SuspensionPre-adjusted suspension, 145L x 850B 24 x 24
- Brake Rotors 160 mm front and rear
- Chain1/2*3/32*128L
- Derailleur7-Speed Shimano Tourney
- ForkMOZO Spring Suspension, 80mm Travel, Lockout and Preload Adjustment
- Gearing1 x 7 Speed
- HandlebarAluminum Alloy, 600mm Width, 25.4mm Bore
- KickstandHeavy-duty aluminum stand
- RimsAluminum Alloy, 20 inch, Double Wall
- SeatpostAluminum Alloy, 350mm x 33.9mm Dia
- ShifterShimano SIS Index Thumb Shifter
- Tire20x4" CST BFT Puncture-Resistant
FAQ
What is the price match guarantee?
If you find a lower price from another online store for the same item(s), we will gladly match that price upon purchase.
How long until I receive my bike?
The order will be process in 48 business hours. Once the order has shipped, a shipping confirmation email will be sent to your email. We use FedEx or UPS for shipping. Please allow 2~7 business days for the shipment to arrive to your designated location. Any delivery dates provided by Mokwheel are estimates.
Do I need a license for riding Ebike?
No, you don’t need a license for riding Ebike. Please read Safety Instructions carefully for your safety.
Are your bikes waterproof?
Our bikes are water and dust resistant, rated IP54. This means that they can be ridden in the rain, but we would still advise against leaving them exposed to the elements. We would also recommend cleaning your bikes with a damp cloth instead of hosing them down, to prevent damage to any components.
How to clean the Ebike?
We recommended you to take off the battery. Otherwise, you can clean the E-bike as the normal bike.
